Odhaah suugaaneed:

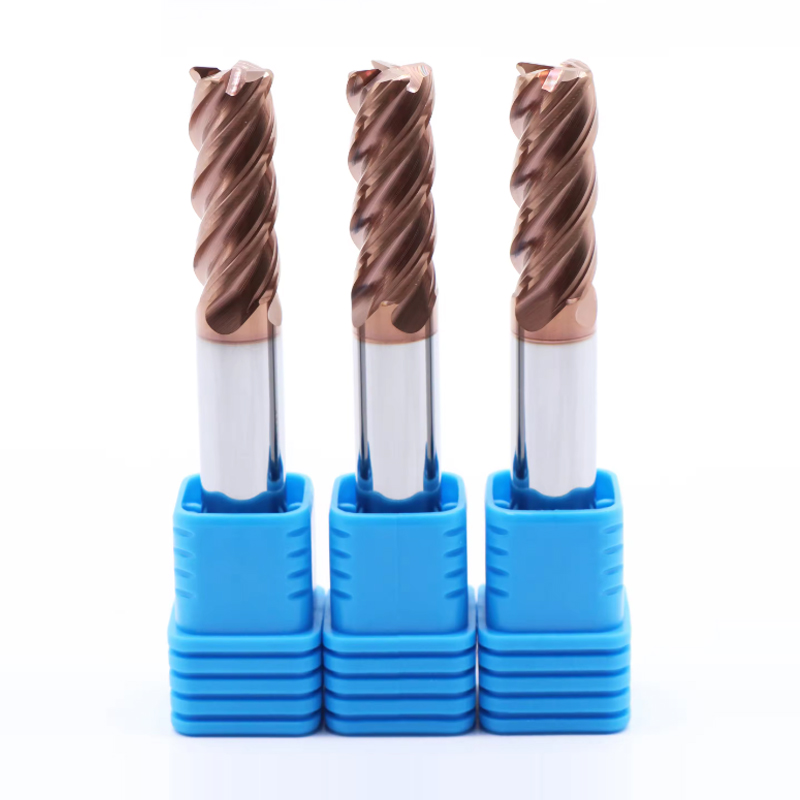

Warshada dhamaadka dhimashada si weyn baa loo isticmaalaa, waxaa lagu rakibi karaa oo loo isticmaali karaa pneumatic ama qalab koronto, hufnaanta wax soo saarka iyo adkeysiga marka loo eego giraangiraha shiida oo kordhiya tirada jeer ee faylka.

Astaamaha:

• Ku haboon Dhamaystirka Semi-Finishing iyo Dhamaystirka 62-68HRC Biraha Adag.

• Awood sare, qalabka matrix-ka adkeysi aad u sarreeya oo leh daahan cusub oo la sameeyay, waxay si weyn u dheereysaa nolosha aaladda

• Lagu taliyay in la isticmaalo qaboojinta hawada ama saliidda

Cabbirka caadiga ah:

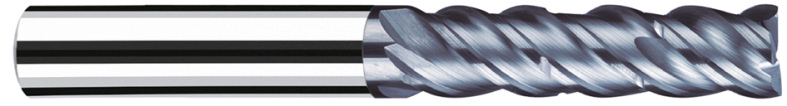

1.4 Flute End mills

Dalbashada koodka	Dhexroorka ka baxsan	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
	(d)	(l)	(L)	(D)
HJMJ650-4F-D010-L050	1.0	3.0	50	4
HJMJ650-4F-D015-L050	1.5	4.5	50	4
HJMJ650-4F-D020-L050	2.0	6.0	50	4
HJMJ650-4F-D025-L050	2.5	7.0	50	4
HJMJ650-4F-D030-L050	3.0	8.0	50	4
HJMJ650-4F-D035-L050	3.5	10.0	50	4
HJMJ650-4F-D040-L050	4.0	11.0	50	4
HJMJ650-4F-D050-L050	5.0	13.0	50	6
HJMJ650-4F-D060-L050	6.0	16.0	50	6
HJMJ650-4F-D070-L060	7.0	17.0	60	8
HJMJ650-4F-D080-L060	8.0	20.0	60	8
HJMJ650-4F-D090-L075	9.0	25.0	75	10
HJMJ650-4F-D100-L075	10.0	25.0	75	10
HJMJ650-4F-D110-L075	11.0	28.0	75	12
HJMJ650-4F-D120-L075	12.0	30.0	75	12
HJMJ650-4F-D140-L080	14.0	35.0	80	14
HJMJ650-4F-D160-L100	16.0	45.0	100	16
HJMJ650-4F-D180-L100	18.0	48.0	100	18
HJMJ650-4F-D200-L100	20.0	50.0	100	20

2. 2 Qulqulka Geeska ee Radius End Mills

Dalbashada koodka	Dhexroorka ka baxsan	R	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
	(d)		(l)	(L)	(D)
HJMJ650-2F-010-02	1	0.2	2	50	4
HJMJ650-2F-015-02	1.5	0.2	3	50	4
HJMJ650-2F-015-03	1.5	0.2	3	50	4
HJMJ650-2F-020-02	2	0.2	4	50	4
HJMJ650-2F-020-05	2	0.5	4	50	4
HJMJ650-2F-025-02	2.5	0.2	5	50	4
HJMJ650-2F-025-05	2.5	0.5	5	50	4
HJMJ650-2F-030-02	3	0.2	6	50	4
HJMJ650-2F-030-05	3	0.5	6	50	4
HJMJ650-2F-030-10	3	1	6	50	4
HJMJ650-2F-040-02	4	0.2	8	50	4
HJMJ650-2F-040-05	4	0.5	8	50	4
HJMJ650-2F-040-10	4	1	8	50	4
HJMJ650-2F-050-05	5	0.5	10	50	6
HJMJ650-2F-050-10	5	1	10	50	6
HJMJ650-2F-060-02	6	0.2	12	50	6
HJMJ650-2F-060-05	6	0.5	12	50	6
HJMJ650-2F-060-10	6	1	12	50	6
HJMJ650-2F-060-15	6	1.5	12	50	6
HJMJ650-2F-060-20	6	2	12	50	8
HJMJ650-2F-080-05	8	0.5	16	60	8
HJMJ650-2F-080-10	8	1	16	60	8
HJMJ650-2F-080-15	8	1.5	16	60	8
HJMJ650-2F-080-20	8	2	16	60	8
HJMJ650-2F-100-05	10	0.5	20	75	10
HJMJ650-2F-100-10	10	1	20	75	10
HJMJ650-2F-100-15	10	1.5	20	75	10
HJMJ650-2F-100-20	10	2	20	75	10
HJMJ650-2F-100-25	10	2.5	20	75	10
HJMJ650-2F-100-30	10	3	20	75	10
HJMJ650-2F-120-05	12	0.5	24	75	12
HJMJ650-2F-120-10	12	1	24	75	12
HJMJ650-2F-120-15	12	1.5	24	75	12
HJMJ650-2F-120-20	12	20	24	75	12
HJMJ650-2F-120-25	12	2.5	24	75	12
HJMJ650-2F-120-30	12	3	24	75	12

3.4 Flute Corner Radius End Mills

Dalbashada koodka	Dhexroorka ka baxsan	R	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
	(d)		(l)	(L)	(D)
HJMJ650-4F-030-02	3	0.2	6	50	4
HJMJ650-4F-030-05	3	0.5	6	50	4
HJMJ650-4F-030-10	3	1	6	50	4
HJMJ650-4F-040-02	4	0.2	8	50	4
HJMJ650-4F-040-05	4	0.5	8	50	4
HJMJ650-4F-040-10	4	1	8	50	4
HJMJ650-4F-050-05	5	0.5	10	50	6
HJMJ650-4F-050-10	5	1	10	50	6
HJMJ650-4F-060-02	6	0.2	12	50	6
HJMJ650-4F-060-05	6	0.5	12	50	6
HJMJ650-4F-060-10	6	1	12	50	6
HJMJ650-4F-060-15	6	1.5	12	50	6
HJMJ650-4F-060-20	6	2	12	50	8
HJMJ650-4F-080-05	8	0.5	16	60	8
HJMJ650-4F-080-10	8	1	16	60	8
HJMJ650-4F-080-15	8	1.5	16	60	8
HJMJ650-4F-080-20	8	2	16	60	8
HJMJ650-4F-100-05	10	0.5	20	75	10
HJMJ650-4F-100-10	10	1	20	75	10
HJMJ650-4F-100-15	10	1.5	20	75	10
HJMJ650-4F-100-20	10	2	20	75	10
HJMJ650-4F-100-25	10	2.5	20	75	10
HJMJ650-4F-100-30	10	3	20	75	10
HJMJ650-4F-120-05	12	0.5	24	75	12
HJMJ650-4F-120-10	12	1	24	75	12
HJMJ650-4F-120-15	12	1.5	24	75	12
HJMJ650-4F-120-20	12	2	24	75	12
HJMJ650-4F-120-25	12	2.5	24	75	12
HJMJ650-4F-120-30	12	3	24	75	12

Qalab ka kooban:
1.Guryaha Jirka:
A) Adag ka weyn ama le'eg 94 HRA;
B) Cufnaanta ka weyn ama la mid ah 14.6g/cm³;
C) TRS ka weyn ama la mid yahay 4100 N/mm²;
D)  Xor ka ah xaaladda marxaladda ETA;
E)  Ma jiro wasakh kale;
F) Porosity = A00/ B00 / C00 ;
G) Labbiska iyo cabbirka badarka joogtada ah. Ma jiro cabbir hadhuudh ah oo ka weyn kara inta la cayimay.
H) Chromium karbidhida joojiyaha koritaanka hadhuudhka oo keliya.
2.Dhammaan qalabka wax soo saarka, dahaarka waxaa loo isticmaalaa gudaha Germany, Switzerland, qalabka habaynta;
3.Waxa la soo jeediyay in la gooyo wax ka yar 65HRC;

Dahaarka:
Dahaarka Waxqabadka Sare ee Caalamiga ah ee AlCrSiN
Tilmaamaha iyo Shaqada
1, Kordhinta wax soo saarka ay sabab u tahay xawaaraha goynta si weyn u sarreeya iyo quudinta codsiyada in tiro balaadhan oo ah wax soo saarka.
2. Naqshad gaar ah oo qaab-dhismeedku waxay keenaysaa dheelitirnaan wanaagsan oo u dhexeeya adkaanta, xasilloonida kuleylka-shoogga iyo walbahaarka hadhaaga ah.

Qiyaasta hawlgalka:

HJMJ650 End mill for die Operation parameter:
HJMJ650-S2  For Alloy Steel,Hardened Steel-Side Milling
Darajooyinka	Qaabka qalabka	Qalabka shaqada	Goynta Qoto dheer	VC	Qalabka  dhexroorka	2	4	6	8	10	12	16	20
	S2		(mm)	m/min	(mm)
HJMJ650	Square, gees radius	Daawaha birta  bir ah      HRC65	ap≤1D	120	Xawaaraha	19100	9550	6730	4780	3820	3190	2390	1910
					（min-1)
			ae≤0.05D		Xawaaraha quudinta	380	380	380	380	370	360	310	290
					(mm/min)

HJMJ650End mill for die Operation parameter:
HJMJ650-S4   For Alloy Steel,Hardened Steel-Side Milling
Darajooyinka	Qaabka qalabka	Qalabka shaqada	Moolka goynta (mm)	VC	Qalabka  dhexroorka	2	4	6	8	10	12
	S4			m/min	(mm)
HJMJ650	Laba gees, gees  gees	HRC58-62	ap≤1D	120	Xawaaraha	19100	9550	6730	4780	3820	3190
					（min-1)
			ae≤0.05D		Xawaaraha quudinta	760	760	760	760	730	710
					(mm/min)
		HRC68	ap≤0.7D	90	Xawaaraha	15920	11940	7960	5970	4780	3980
					（min-1)
			ae≤0.03D		Xawaaraha quudinta	510	720	730	720	730	670
					(mm/min)

Fiiro gaar ah:

1. Hubi in qaybta shaqadu iyo mishiinkuba ay deggan yihiin isticmaalna haye sax ah.

2. Fadlan u hagaaji xawaaraha, quudinta iyo qoto dheeraanta goynta iyadoo loo eegayo xaaladaha goynta dhabta ah.

3. Shuruudaha wax lagu shubo waxaa loogu talagalay warshad dhamaadka ah halkaasoo dhererka qalabka uu ka yar yahay 4*D (mill dia). Marka qalabku dhererkiisu dheer yahay, fadlan hagaaji xawaaraha, quudinta iyo qoto dheeraanta goynta.

Shirkaddu waxay leedahay line-soo-saarka habka wax soo saarka daab dhamaystiran oo ka soo diyaarinta alaabta ceeriin budada, samaynta caaryada, riixaya, sintering cadaadis, shiidi, daahan iyo daahan daahan ka dib daaweynta. Waxay diiradda saaraysaa cilmi-baarista iyo hal-abuurka ee alaabta saldhigga ah, qaab-dhismeedka jeexdin, samaynta saxda ah iyo daahan dusha sare ee gelinta carbide NC, waxayna si joogto ah u wanaajisaa hufnaanta mashiinnada, nolosha adeegga iyo guryaha kale ee goynta carbide NC. Ka dib in ka badan toban sano oo cilmi-baaris cilmiyeed iyo hal-abuurnimo, shirkaddu waxay kasbatay tiro tignoolajiyada aasaasiga ah ee madax-bannaan, waxay leedahay R&D madax-bannaan iyo awoodaha naqshadeynta, waxayna siin kartaa wax-soo-saar gaar ah macmiil kasta.
