F4-dhammaan dahaarka dheemanka ee Graphite

Daahan dheeman ee Graphite

sharaxaad:

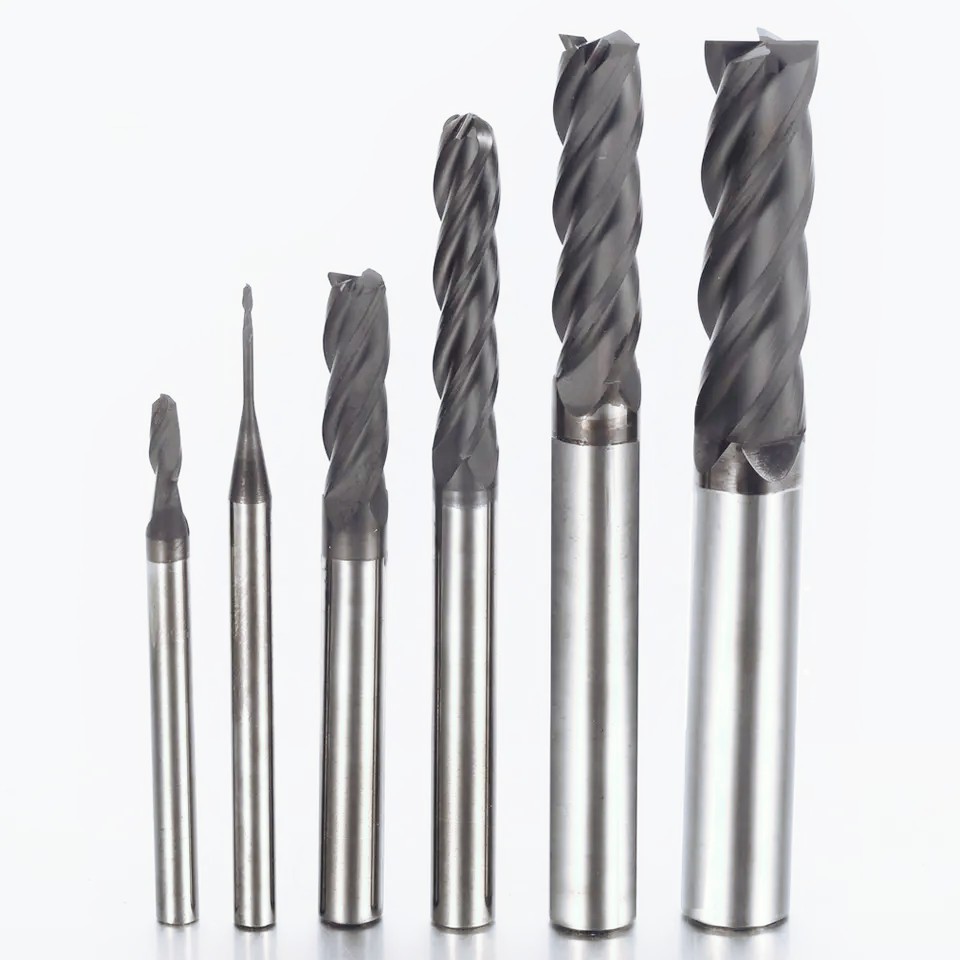

HJG600 4 Flute End Mill waxaa loo isticmaalaa warshadaha casriga ah ee garaafyada farsamaynta, goynta daawaha. Ku habboon dhamaystirka nus-dhamaadka iyo dhamaystirka garaafka, codso qaboojinta hawada.

HJG600 taxane-Diamond daahan ee Graphite warshad dhamaadka

loo isticmaalo warshadaha casriga ah ee farsamaynta graphite, goynta aluminium.

Dahaarka Dheemanka Fiican ee Ultra Fine

NOO SOO DIR

FAAHFAAHINTA Alaabada

Odhaah suugaaneed:
Graphite Endmills waxaa loo isticmaalaa warshadaha casriga ah ee farsamaynta garaafka, goynta aluminiumka. Sifooyinkeeda garaafyada jilicsan awgeed, waxaanu isticmaalnaa cabbirka hadhuudhka tungsten carbide oo leh kobalt ka kooban yahay, isla mar ahaantaana, waxaanu isticmaalnaa dahaarka cabbirka hadhuudhka dheemanka, isku dhafkan ugu fiican ayaa hubinaya nolosha wanaagsan ee qalabka.
Astaamaha:
1. Substrate gaar ah oo leh isku dhafka ugu fiican ee daahan dheeman, caabbinta xirashada sare.
2. Ku haboon semi-dhameystirka iyo dhamaystirka graphite, codso qaboojinta hawada.

undefined

Cabbirka caadiga ah:
1.square 4 flute graphite End mill

koodka dalbashada	D	Lc	L	d
HJG600-S4-02006	2	6	50	4
HJG600-S4-03009	3	9	50	4
HJG600-S4-04010	4	10	50	4
HJG600-S4-05013	5	13	50	6
HJG600-S4-06015	6	15	50	6
HJG600-S4-08020	8	20	60	8
HJG600-S4-10025	10	25	75	10
HJG600-S4-12030	12	30	75	12
HJG600-S4-64011	64	11	50	6

2.Radius geesaha

koodka dalbashada	D	Lc	r	L	d
HJG600-R4-02002	2	3.5	0.2	50	4
HJG600-R4-03002	3	4	0.2	50	4
HJG600-R4-04010	4	6	1	50	4
HJG600-R4-05003	5	7	0.3	50	6
HJG600-R4-06005	6	9	0.5	50	6
HJG600-R4-06010	6	9	1	50	6
HJG600-R4-08005	8	12	0.5	60	8
HJG600-R4-08010	8	12	1	60	8
HJG600-R4-10005	10	15	0.5	75	10
HJG600-R4-10010	10	15	1	75	10
HJG600-R4-12005	12	18	0.5	75	12
HJG600-R4-12010	12	18	1	75	12

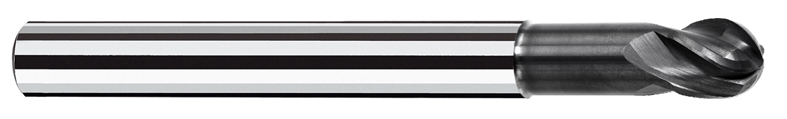

3.Ball sanka 2 biibiile garaafyada dhamaadka

koodka dalbashada	D	R	Lc	L	d
HJG600-B2-01002	1	0.5	2	50	4
HJG600-B2-02004	2	1	4	50	4
HJG600-B2-03006	3	1.5	6	50	4
HJG600-B2-04008	4	2	8	50	4
HJG600-B2-05010	5	2.5	10	50	6
HJG600-B2-06012	6	3	12	50	6
HJG600-B2-08014	8	4	14	60	9
HJG600-B2-10018	10	5	18	75	10
HJG600-B2-12022	12	6	22	75	12

Qalab ka kooban:

1.Guryaha Jirka:

A) Adag ka weyn ama la mid ah 93.5 HRA;

B) Cufnaanta ka weyn ama la mid ah 14.6 g/cm³;

C) TRS ka weyn ama la mid ah 3600 N/mm²;

2.Dhammaan qalabka wax soo saarka, dahaarka waxaa loo isticmaalaa gudaha Germany, Switzerland, qalabka habaynta;

Dahaarka:

Dahaarka Dheemanka Fiican ee Ultra Fine

Tilmaamaha iyo Shaqada
1. Daahan daahirnimo sare leh, oo leh engegnaan ilaa 80GPa.
2
3, Ku haboon dhamaystirka machining qalabka nonferrous, sida graphite, aluminium, fiber carbon, dhoobada, iwm.

Fiiro gaar ah:

1. Hubi in qaybta shaqada iyo mishiinkuba ay xasiloon yihiin isticmaalna haye sax ah.

2. Fadlan hagaaji xawaaraha, quudinta iyo goynta qoto dheer sida ay shuruudaha goynta dhabta ah.

3. Shuruudaha wax lagu shubo waxaa loogu talagalay warshad dhamaadka ah halkaasoo dhererka qalabku uu ka yar yahay 4 * D (mill dia).

Marka qalabku dhererkiisu dheer yahay, fadlan hagaaji xawaaraha, quudinta iyo goynta qoto dheer.

undefined

Shirkaddu waxay leedahay line-soo-saarka habka wax soo saarka daab dhamaystiran oo ka soo diyaarinta alaabta ceeriin budada, samaynta caaryada, riixaya, sintering cadaadis, shiidi, daahan iyo daahan daahan ka dib daaweynta. Waxay diiradda saaraysaa cilmi-baarista iyo hal-abuurka ee alaabta saldhigga ah, qaab-dhismeedka jeexdin, samaynta saxda ah iyo daahan dusha sare ee gelinta carbide NC, waxayna si joogto ah u wanaajisaa hufnaanta mashiinnada, nolosha adeegga iyo guryaha kale ee goynta carbide NC. Ka dib in ka badan toban sano oo cilmi-baaris cilmiyeed iyo hal-abuurnimo, shirkaddu waxay kasbatay tiro tignoolajiyada aasaasiga ah ee madax-bannaan, waxay leedahay R&D madax-bannaan iyo awoodaha naqshadeynta, waxayna siin kartaa wax-soo-saar gaar ah macmiil kasta.
