HJMJ600 Dhamaadka Mille ee Biraha Adag (48-60 HRC) , isticmaal daboolka Waxqabadka Sare ee Caalamiga ah AlCrSiN.

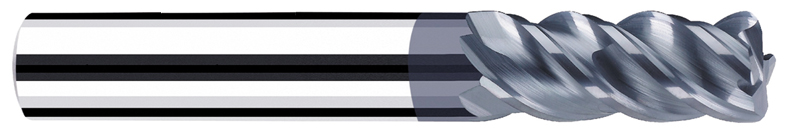

HJMJ600 Dhamaadka Mille ee Biraha Adag (48-60 HRC)

codsiga: Wixii biraha adag (48-60 HRC) dhamaystirka.

Dahaarka Waxqabadka Sare ee Caalamiga ah ee AlCrSiN

F4 F2

NOO SOO DIR

FAAHFAAHINTA Alaabada

Odhaah suugaaneed
Warshada dhamaadka dhimashada si weyn baa loo isticmaalaa, waxaa lagu rakibi karaa oo loo isticmaali karaa pneumatic ama qalab koronto, hufnaanta wax soo saarka iyo adkeysiga marka loo eego giraangiraha shiida oo kordhiya tirada jeer ee faylka.

Astaamaha:

1.High engegan, qalabka matrix adag, design xagal gaar ah iyo daawaynta cidhif, gaar ah ee birta adag qiran.
2.Dhammaystirka birta adag (48-60 HRC).
3. Waxaa lagu talinayaa in la isticmaalo qaboojinta hawada ama saliidda.

undefined

Cabbirka caadiga ah:

1.4 Flute End mills

Dalbashada koodka	Dhexroorka ka baxsan	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
Dalbashada koodka	(d)	Dhererka hargabka	(L)	(D)
HJMJ600-4F-D010-L050	1.0	3.0	50	4
HJMJ600-4F-D015-L050	1.5	4.5	50	4
HJMJ600-4F-D020-L050	2.0	6.0	50	4
HJMJ600-4F-D025-L050	2.5	7.0	50	4
HJMJ600-4F-D030-L050	3.0	8.0	50	4
HJMJ600-4F-D035-L050	3.5	10.0	50	4
HJMJ600-4F-D040-L050	4.0	11.0	50	4
HJMJ600-4F-D050-L050	5.0	13.0	50	6
HJMJ600-4F-D060-L050	6.0	16.0	50	6
HJMJ600-4F-D070-L060	7.0	17.0	60	8
HJMJ600-4F-D080-L060	8.0	20.0	60	8
HJMJ600-4F-D090-L075	9.0	25.0	75	10
HJMJ600-4F-D100-L075	10.0	25.0	75	10
HJMJ600-4F-D110-L075	11.0	28.0	75	12
HJMJ600-4F-D120-L075	12.0	30.0	75	12
HJMJ600-4F-D140-L080	14.0	35.0	80	14
HJMJ600-4F-D160-L100	16.0	45.0	100	16
HJMJ600-4F-D180-L100	18.0	48.0	100	18
HJMJ600-4F-D200-L100	20.0	50.0	100	20

2. 2 Flute Corner Radius End Mills

Dalbashada koodka	Dhexroorka ka baxsan	R	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
Dalbashada koodka	(d)	R	(l)	(L)	(D)
HJMJ600-2F-010-02	1	0.2	2	50	4
HJMJ600-2F-015-02	1.5	0.2	3	50	4
HJMJ600-2F-015-03	1.5	0.2	3	50	4
HJMJ600-2F-020-02	2	0.2	4	50	4
HJMJ600-2F-020-05	2	0.5	4	50	4
HJMJ600-2F-025-02	2.5	0.2	5	50	4
HJMJ600-2F-025-05	2.5	0.5	5	50	4
HJMJ600-2F-030-02	3	0.2	6	50	4
HJMJ600-2F-030-05	3	0.5	6	50	4
HJMJ600-2F-030-10	3	1	6	50	4
HJMJ600-2F-040-02	4	0.2	8	50	4
HJMJ600-2F-040-05	4	0.5	8	50	4
HJMJ600-2F-040-10	4	1	8	50	4
HJMJ600-2F-050-05	5	0.5	10	50	6
HJMJ600-2F-050-10	5	1	10	50	6
HJMJ600-2F-060-02	6	0.2	12	50	6
HJMJ600-2F-060-05	6	0.5	12	50	6
HJMJ600-2F-060-10	6	1	12	50	6
HJMJ600-2F-060-15	6	1.5	12	50	6
HJMJ600-2F-060-20	6	2	12	50	8
HJMJ600-2F-080-05	8	0.5	16	60	8
HJMJ600-2F-080-10	8	1	16	60	8
HJMJ600-2F-080-15	8	1.5	16	60	8
HJMJ600-2F-080-20	8	2	16	60	8
HJMJ600-2F-100-05	10	0.5	20	75	10
HJMJ600-2F-100-10	10	1	20	75	10
HJMJ600-2F-100-15	10	1.5	20	75	10
HJMJ600-2F-100-20	10	2	20	75	10
HJMJ600-2F-100-25	10	2.5	20	75	10
HJMJ600-2F-100-30	10	3	20	75	10
HJMJ600-2F-120-05	12	0.5	24	75	12
HJMJ600-2F-120-10	12	1	24	75	12
HJMJ600-2F-120-15	12	1.5	24	75	12
HJMJ600-2F-120-20	12	20	24	75	12
HJMJ600-2F-120-25	12	2.5	24	75	12
HJMJ600-2F-120-30	12	3	24	75	12

3.4 Flute Corner Radius End Mills

Dalbashada koodka	Dhexroorka ka baxsan	R	Dhererka hargabka	Dhererka guud	Dhexroorka Shank
Dalbashada koodka	(d)	R	(l)	(L)	(D)
HJMJ600-4F-030-02	3	0.2	6	50	4
HJMJ600-4F-030-05	3	0.5	6	50	4
HJMJ600-4F-030-10	3	1	6	50	4
HJMJ600-4F-040-02	4	0.2	8	50	4
HJMJ600-4F-040-05	4	0.5	8	50	4
HJMJ600-4F-040-10	4	1	8	50	4
HJMJ600-4F-050-05	5	0.5	10	50	6
HJMJ600-4F-050-10	5	1	10	50	6
HJMJ600-4F-060-02	6	0.2	12	50	6
HJMJ600-4F-060-05	6	0.5	12	50	6
HJMJ600-4F-060-10	6	1	12	50	6
HJMJ600-4F-060-15	6	1.5	12	50	6
HJMJ600-4F-060-20	6	2	12	50	8
HJMJ600-4F-080-05	8	0.5	16	60	8
HJMJ600-4F-080-10	8	1	16	60	8
HJMJ600-4F-080-15	8	1.5	16	60	8
HJMJ600-4F-080-20	8	2	16	60	8
HJMJ600-4F-100-05	10	0.5	20	75	10
HJMJ600-4F-100-10	10	1	20	75	10
HJMJ600-4F-100-15	10	1.5	20	75	10
HJMJ600-4F-100-20	10	2	20	75	10
HJMJ600-4F-100-25	10	2.5	20	75	10
HJMJ600-4F-100-30	10	3	20	75	10
HJMJ600-4F-120-05	12	0.5	24	75	12
HJMJ600-4F-120-10	12	1	24	75	12
HJMJ600-4F-120-15	12	1.5	24	75	12
HJMJ600-4F-120-20	12	2	24	75	12
HJMJ600-4F-120-25	12	2.5	24	75	12
HJMJ600-4F-120-30	12	3	24	75	12

Qalabaynta qalabka

1.Guryaha Jirka:

A) Adag ka weyn ama la mid ah 92.8 HRA;

B) Cufnaanta ka weyn ama la mid ah 14.2 g/cm³;

C) TRS ka weyn ama la mid ah 4200 N/mm²;

D) Xor ka ah xaaladda marxaladda ETA;

E) Wax wasakhayn ah oo alaabta kale;

F) Porosity = A00 / B00 / C00 ;

G) Cabbirka badarka lebbisan oo joogto ah. Ma jiro cabbir hadhuudh ah oo ka weyn kara inta la cayimay.

H) Chromium kaarbiid ka hortag koritaanka hadhuudhka oo keliya.

2.Dhammaan qalabka wax soo saarka, dahaarka waxaa loo isticmaalaa gudaha Germany, Switzerland, qalabka habaynta;

Dahaarka:
Dahaarka Waxqabadka Sare ee Caalamiga ah ee AlCrSiN
Tilmaamaha iyo Shaqada
1, Kordhinta wax soo saarka ay sabab u tahay xawaaraha goynta si weyn u sarreeya iyo quudinta codsiyada in tiro balaadhan oo ah wax soo saarka.
2. Naqshad gaar ah oo qaab-dhismeedku waxay keenaysaa dheelitirnaan wanaagsan oo u dhexeeya adkaanta, xasilloonida kuleylka-shoogga iyo walbahaarka hadhaaga ah.

Qiyaasta hawlgalka:

HJMJ600End mill for die Operation parameter:

HJMJ600-S4 For Alloy Steel,Hardened Steel-Side Milling
Darajooyinka	Qaabka qalabka	Qalabka shaqada	Qoto goyn	VC	Qalabka dhexroorka	2	4	6	8	10	12
	S4		(mm)	m/min	(mm)
HJMJ600	Laba gees, radius gees ah	HRC58	ap≤1D	120	Speed（min-1)	19100	9550	6730	4780	3820	3190
			ae≤0.05D		Xawaaraha quudinta	760	760	760	760	730	710
					(mm/min)
		HRC58-62	ap≤0.7D	90	Xawaaraha	15920	11940	7960	5970	4780	3980
					（min-1)
			ae≤0.03D		Xawaaraha quudinta	510	720	730	720	730	670
					(mm/min)

Fiiro gaar ah:

Hubi in qaybta shaqadu iyo mishiinkuba ay deggan yihiin isticmaalna haye sax ah.
Fadlan isku hagaaji xawaaraha, quudinta iyo qoto dheeraanta goynta iyadoo loo eegayo xaaladaha goynta dhabta ah.
Shuruudaha wax lagu shubo waxaa loogu talagalay warshad dhamaadka ah halkaasoo dhererka qalabka uu ka yar yahay 4*D (mill dia). Marka qalabku dhererkiisu dheer yahay, fadlan hagaaji xawaaraha, quudinta iyo goynta qoto dheer.

undefined

Shirkaddu waxay leedahay line-soo-saarka habka wax soo saarka daab dhamaystiran oo ka soo diyaarinta alaabta ceeriin budada, samaynta caaryada, riixaya, sintering cadaadis, shiidi, daahan iyo daahan daahan ka dib daaweynta. Waxay diiradda saaraysaa cilmi-baarista iyo hal-abuurka ee alaabta saldhigga ah, qaab-dhismeedka jeexdin, samaynta saxda ah iyo daahan dusha sare ee gelinta carbide NC, waxayna si joogto ah u wanaajisaa hufnaanta mashiinnada, nolosha adeegga iyo guryaha kale ee goynta carbide NC. Ka dib in ka badan toban sano oo cilmi-baaris cilmiyeed iyo hal-abuurnimo, shirkaddu waxay kasbatay tiro tignoolajiyada aasaasiga ah ee madax-bannaan, waxay leedahay R&D madax-bannaan iyo awoodaha naqshadeynta, waxayna siin kartaa wax-soo-saar gaar ah macmiil kasta.
