Product Description：

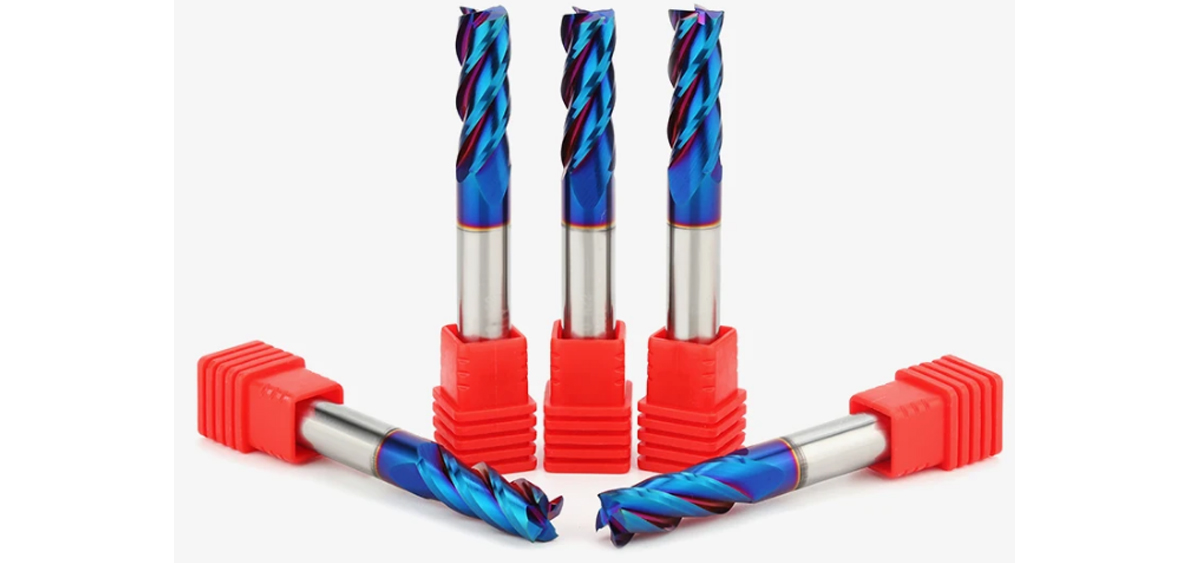

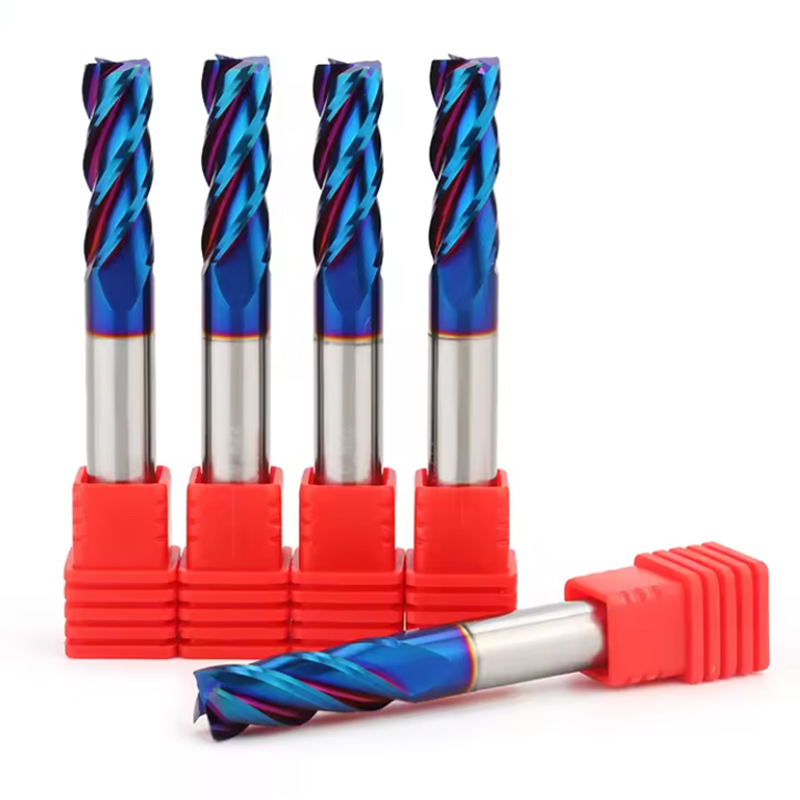

Our 4 flutes square high performance carbide End mill is made of high quality tungsten steel with advanced coating. It’s suitable for carbon steel, alloy steel, cast iron, hardened steel, stainless steel. 45° helix angle provide big capacity of chip evacuation and good heat emission.

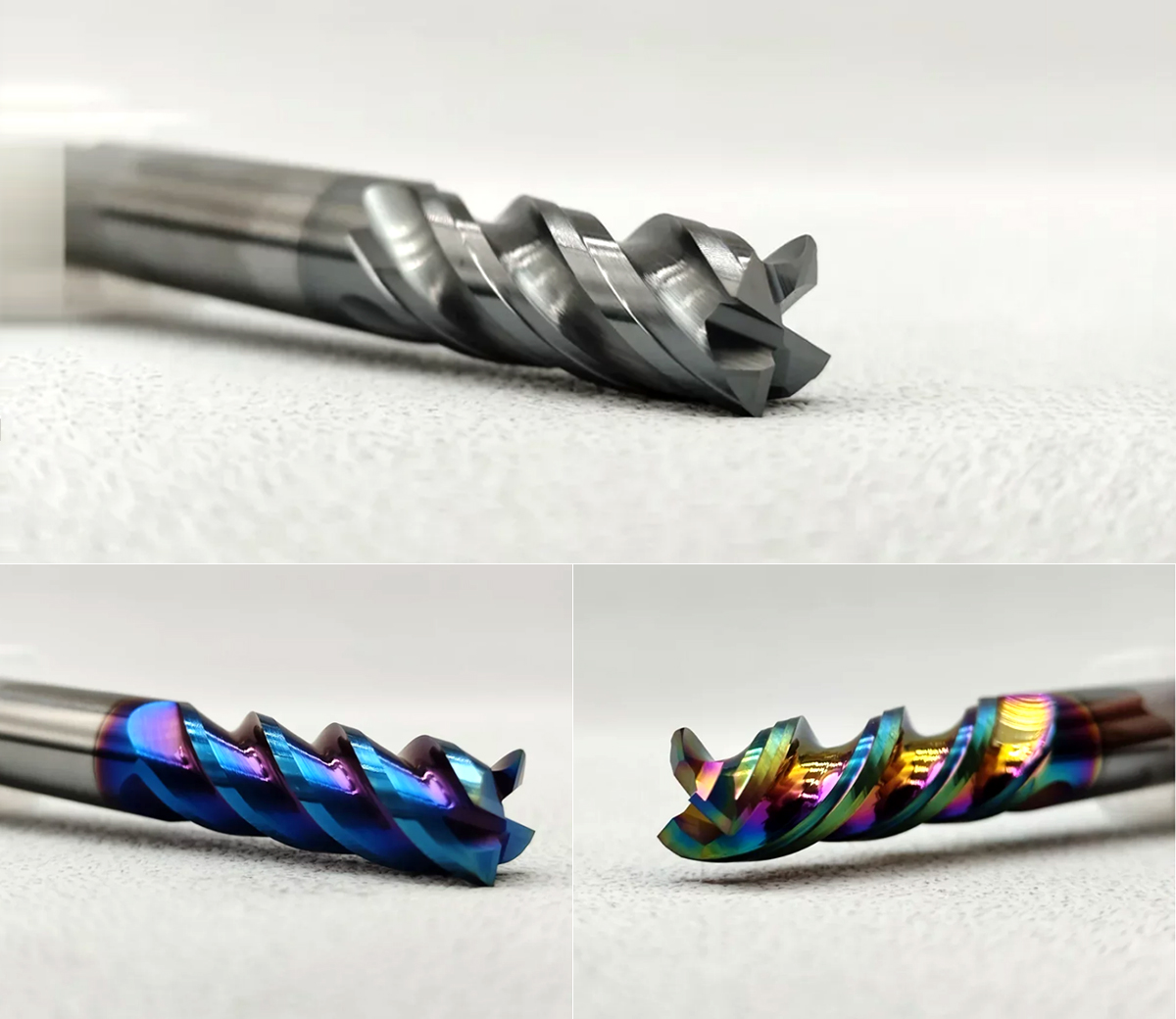

1.Nano coating, high temperature and wear resistance

Corrosion resistance, not easy to oxidize, guarantee the firmness and service life of the coating, and the coating

performance is stable.

2.Tungsten steel material

Imported raw materials, ultra-fine grain tungsten steel material, effectively ensure the quality of milling cutter

3.End Mill Bits are Suitable for Side Milling, End Milling, Finish Machining, etc.

Product name	HRC60 Solid Carbide End mills
Material	Tungsten carbide
Model	Standard
Flutes	2f/4f flutes
Coating	AlTiN, TiAIN,TiSiN,nACo,etc
Color	Black,Violet,Copper,Blue.
HRC	45/55/60/65
Shank diameter	4-12mm
whole length	50-100mm
Helix angle	30/35/45 degree
Application	for carbon steel, alloy steel, cast iron, hardened steel, stainless steel.

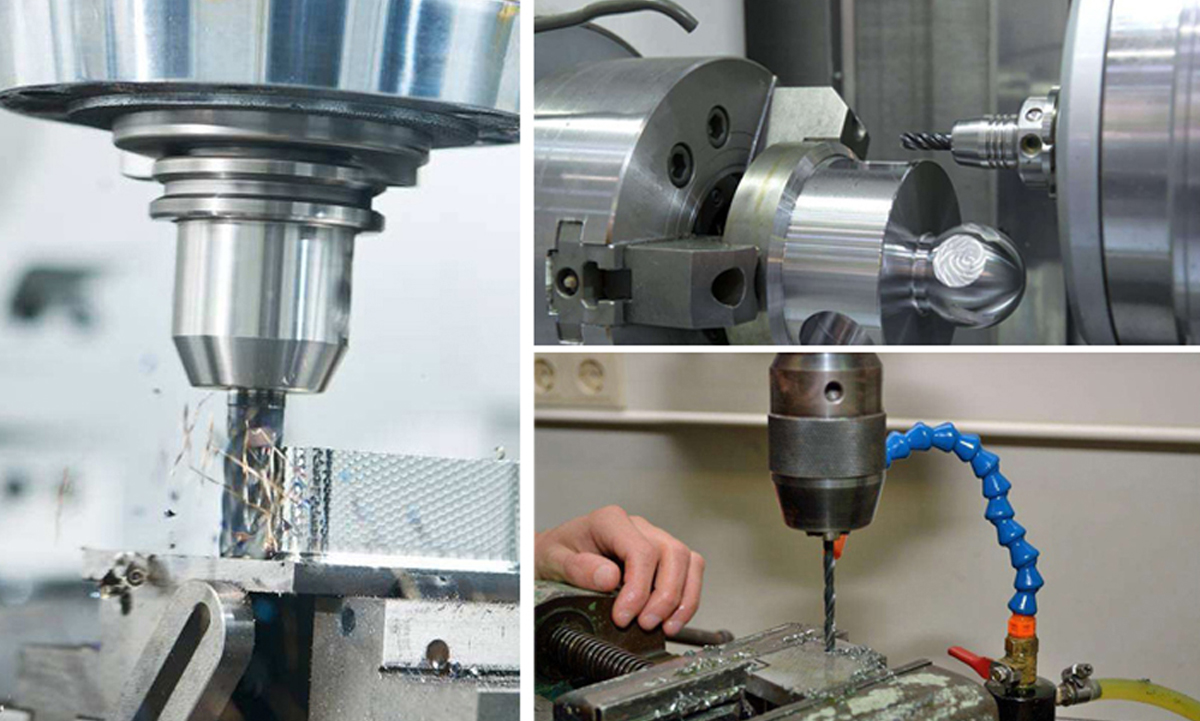

Machine type	CNC Milling Machine, Engraving machine,High speed machine,etc

HRC60 High Performance General Use Square End Mill
Mill Dia	LOC	Shank Dia	OAL
1	3	4	50
1.5	4.5	4	50
4	10	4	50
4	16	4	75
4	20	4	100
5	13	5	50
6	15	6	50
6	25	6	75
6	30	6	100
8	20	8	60
8	25	8	75
8	35	8	100
10	25	10	75
10	40	10	100
12	30	12	75
12	45	12	100

Our advantages:

• Professional team for production: Have more than 10 years experience for production on carbide filed.

• Fast delivery based on high production capability.

• Strict quality control system: Ensure our product in good and stable quality.

• Rich experience on customized products.

• Technical support: Help you get the best solution.

•


• Application ：


• Large helical and rake angle, sharp cutting edge,unique edge geometry can restrain cutting-heat's influence on tool

nose, and greatly improve wear resistance and heat resistance.

• The coating with good heat resistance can achievestable machining even at high temperature

  Very suitable for machining of hard-to-cut materialssuch as  for carbon steel, alloy steel, cast iron, hardened steel, stainless steel. ,etc.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
