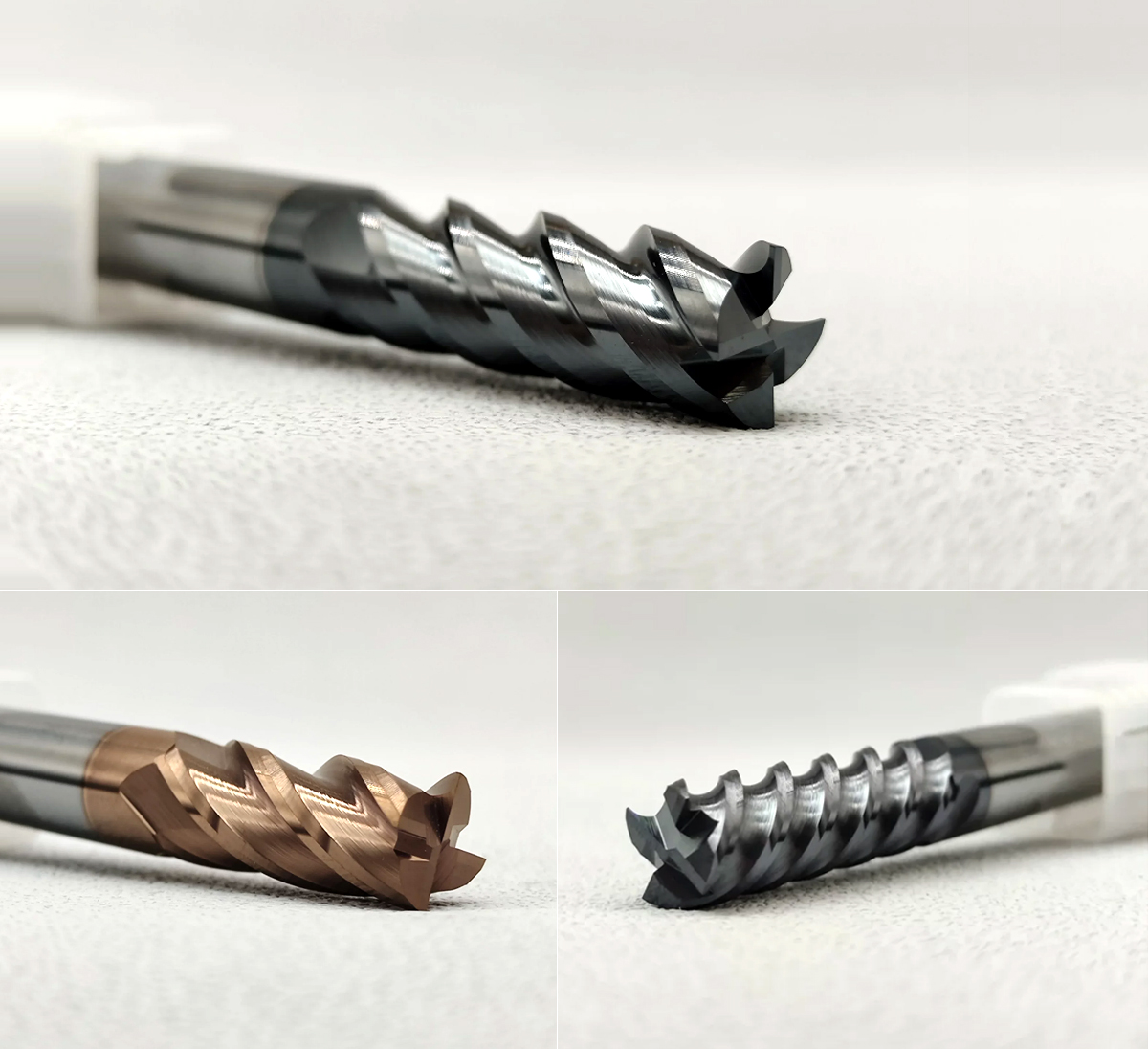

Product Description：

Using sub-fine grain tungsten carbide steel as base material, these carbide End mills has high hardness and excellent wear resistance. Enhanced by the latest coating, our solid carbide end mills is suitable for steel, mould steel, castiron materials  HRC48-55. has carbide end mill, corner radius end mill and ball nose end mill for your choose.

1.Nano coating, high temperature and wear resistance

Corrosion resistance, not easy to oxidize, guarantee the firmness and service life of the coating, and the coating

performance is stable.

2.0.6um micro particle tungsten carbide

The micro-grain tungsten steel base material has higher wear resistance and strength, and belongs to the exclusive

milling cutter for high-hardness and high-speed cutting applications.

Product name	HRC55 Solid Carbide End mills
Material	Tungsten carbide
Model	Standard
Flutes	2f/4f flutes
Coating	AlTiN, TiAIN,TiSiN,nACo,etc
Color	Black,Violet,Copper,Blue.
HRC	45/55/60/65
Shank diameter	4-20mm
whole length	50-150mm
Helix angle	30/35/45 degree
Application	Cast iron, mould steel, carbon, alloy steel, etc
Machine type	CNC Milling Machine, Engraving machine,High speed machine,etc

Our advantages:

• Professional team for production: Have more than 10 years experience for production on carbide filed.

• Fast delivery based on high production capability.

• Strict quality control system: Ensure our product in good and stable quality.

• Rich experience on customized products.

• Technical support: Help you get the best solution.

• Application ：


Large helical and rake angle, sharp cutting edge,unique edge geometry can restrain cutting-heat's influence on tool

nose, and greatly improve wear resistance and heat resistance.

• The coating with good heat resistance can achievestable machining even at high temperature

• Very suitable for machining of hard-to-cut materialssuch as stainless steel, mould steel, cast iron materials below Ni substrate high temperaturealloy, etc.

Regular size:

Specification

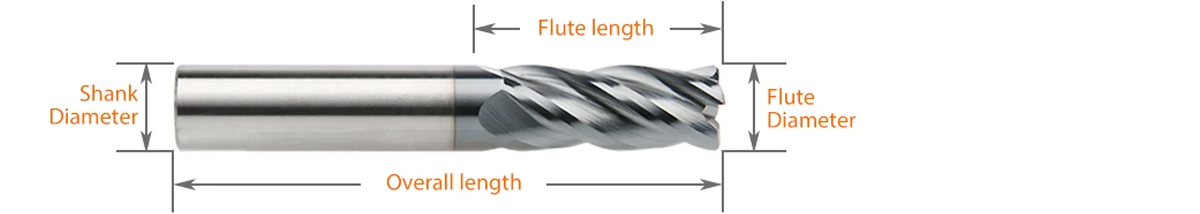

Mill Diameter(mm)	LOC(mm)	Shank Diameter(mm)	OAL(mm)
1	3	4	50
1.5	4.5	4	50
2	6	4	50
2.5	7	4	50
3	8	4	50
4	10	4	50
4	16	4	75
4	20	4	100
5	13	5	50
6	15	6	50
6	25	6	75
6	30	6	100
6	40	6	150
8	20	8	60
8	25	8	75
8	35	8	100
8	40	8	150
10	25	10	75
10	40	10	100
10	50	10	150
12	30	12	75
12	45	12	100
12	55	12	150
14	40	14	100
14	60	14	150
16	45	16	100
16	70	16	150
18	45	18	100
18	70	18	150
20	45	20	100
20	70	20	150

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
