End Mill for Hardened Steels (65 HRC)

description:

HJS650 End Mill Suitable for Hardened Steels (65 HRC) , use Universal High Performance Coating AlCrSiN.

HJS650 series - End Mill for Hardened Steels (65 HRC)

Suitable for Semi-Finishing and Finishing of 62-68HRC Hardened Steels.

Universal High Performance Coating AlCrSiN

F4 F2

SEND US MAIL

PRODUCT DETAIL

Product Description：

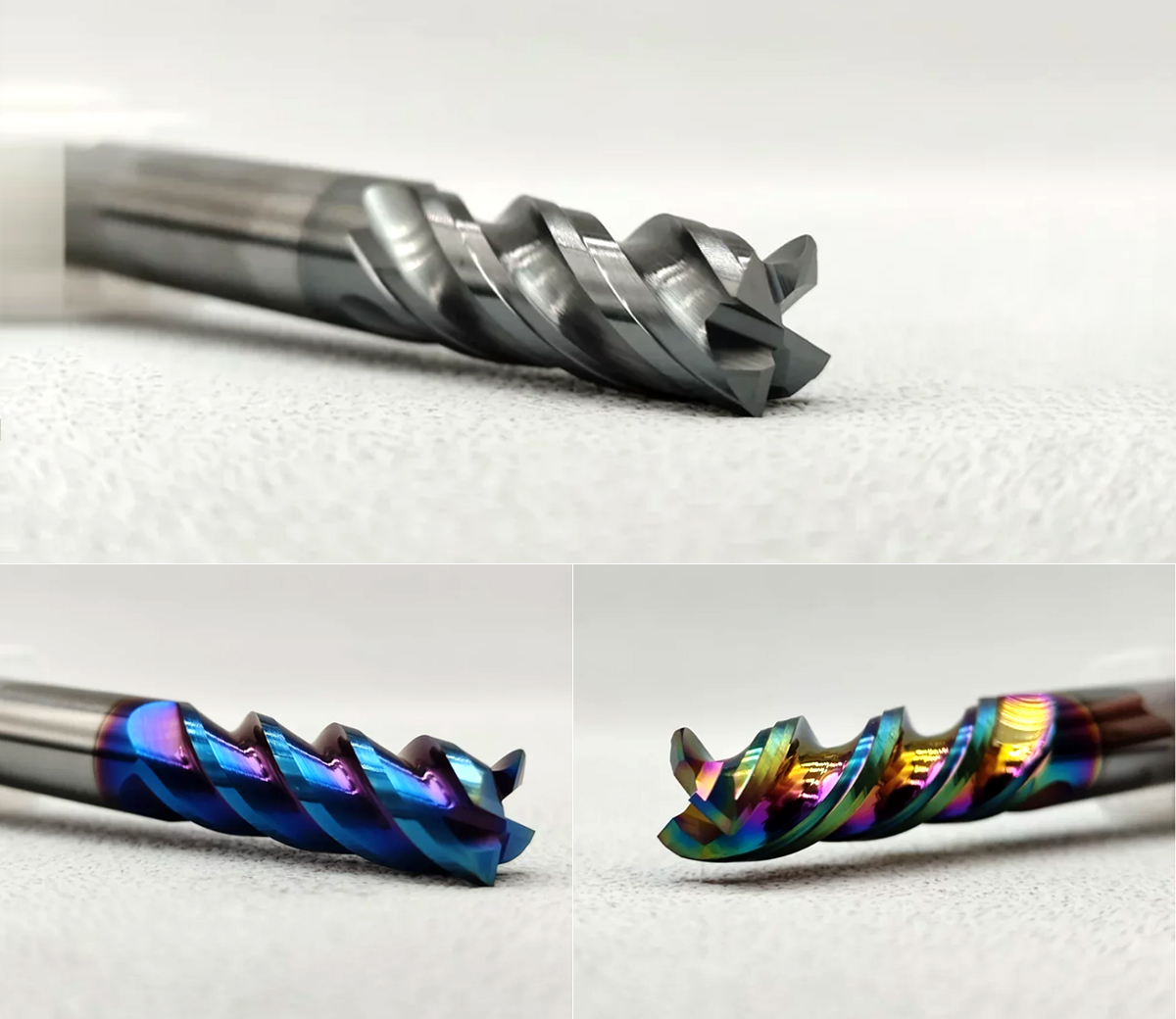

This kind of carbide End mill is designed for processing harden material like hardened steel, carbon steel, mould steel, titanium alloy, heat-treated steel. Ultra fine grain size base material with blue Nano coating not only make the tool life much more longer compare to others, but also provide good surface finish and widely used in high speed machining. Square end mill, corner radius end mill and ball nose end mill in stock for your choose.

1.Nano coating, high temperature and wear resistance

Corrosion resistance, not easy to oxidize, guarantee the firmness and service life of the coating, and the coating

performance is stable.

2.Tungsten steel material

Imported raw materials, ultra-fine grain tungsten steel material, effectively ensure the quality of milling cutter

3.End Mill Bits are Suitable for Side Milling, End Milling, Finish Machining, etc.

End Mill for Hardened Steels (65 HRC)

Product name	HRC65 Solid Carbide End mills
Material	Tungsten carbide
Model	Standard
Flutes	2f/4f flutes
Coating	AlTiN, TiAIN,TiSiN,nACo,etc
Color	Black,Violet,Copper,Blue.
HRC	65
Shank diameter	4-20mm
whole length	50-150mm
Helix angle	30/35/45 degree
Application	for processing harden material like hardened steel, carbon steel, mould steel, titanium alloy, heat-treated steel.
Machine type	CNC Milling Machine, Engraving machine,High speed machine,etc

HRC65 Carbide End Mill
Mill Dia	LOC	Shank Dia	OAL
1	3	4	50
1.5	4.5	4	50
2	6	4	50
4	10	4	50
4	16	4	75
4	20	4	100
5	13	5	50
6	15	6	50
6	25	6	75
6	30	6	100
6	40	6	150
8	20	8	60
8	25	8	75
8	35	8	100
8	40	8	150
10	25	10	75
10	40	10	100
10	50	10	150
12	30	12	75
12	45	12	100
14	40	14	100
14	60	14	150
16	45	16	100
16	70	16	150
18	45	18	100
18	70	18	150
20	45	20	100
20	70	20	150

Application ：

Large helical and rake angle, sharp cutting edge,unique edge geometry can restrain cutting-heat's influence on tool
nose, and greatly improve wear resistance and heat resistance.
The coating with good heat resistance can achievestable machining even at high temperature
Very suitable for machining of hard-to-cut materialssuch as
for processing harden material like hardened steel, carbon steel, mould steel, titanium alloy, heat-treated steel.

End Mill for Hardened Steels (65 HRC)

Our advantages:

Professional team for production: Have more than 10 years experience for production on carbide filed.

Fast delivery based on high production capability.

Strict quality control system: Ensure our product in good and stable quality.

Rich experience on customized products.

Technical support: Help you get the best solution.

End Mill for Hardened Steels (65 HRC)

undefined

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
