Literal stament:
Alumi-tech carbide End mills are designed specifically for milling aluminum and aluminum alloys. Suitable for slot and roughing applications, these tools are available in two and three flute designs, solid and coolant fed. Bright finished and Super-groove grinded standard product is available from stock.

Features:

• Suitable for aluminum alloy (Si≤12%) and copper alloy (<200HB) and side milling，Special edge design, reduces vibration, effectively solve the crumbs.

• Excellent edge strength, excellent self-centering

• Straight lips, precise edge preparation is adapted, reinforce the stregth of edge.

• Small edge home, largeblack taper, reduce friction and torque impaction.

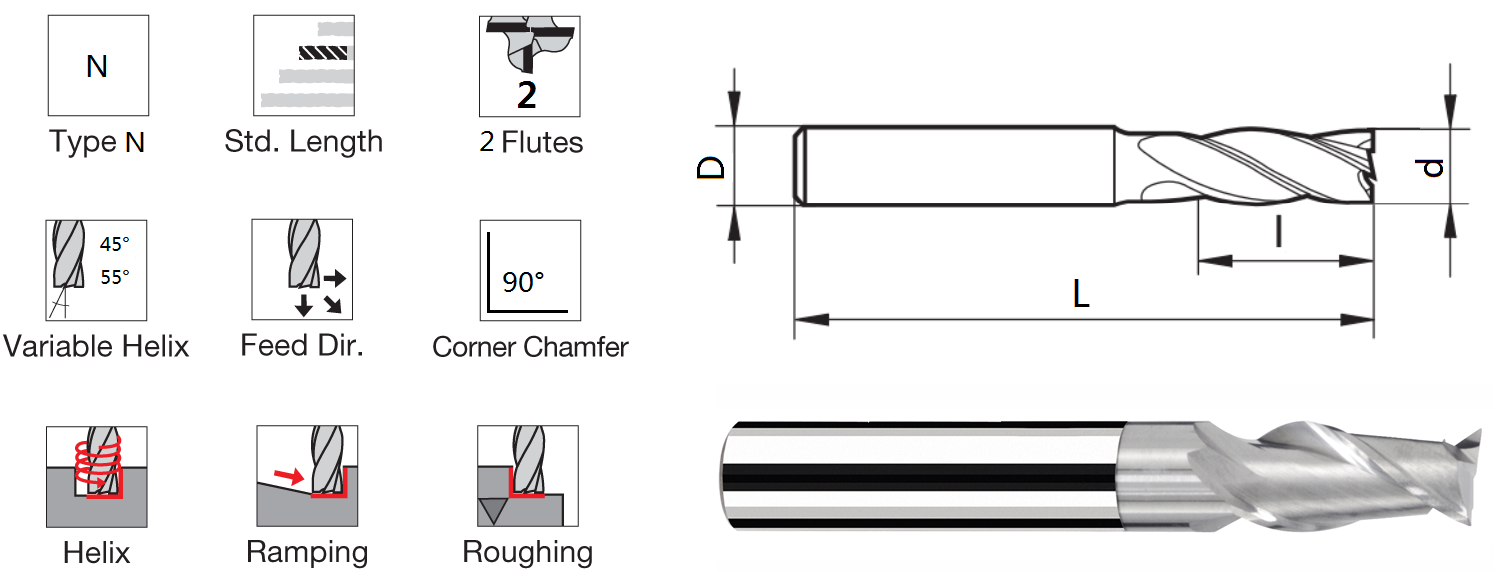

Regular size:

1. Ultrafine particles of 2 flute aluminum end mills

2.Ultrafine particles of  3 flute aluminum end mills

3.Ultrafine particles of  3 flute aluminum lengthened end mills

Tool material composition:
1.Physical Properties:
A) Hardness greater than or equal to 92.8 HRA；
B) Density greater than or equal to 14.2 g/cm³；
C) TRS greater than or equal to 4200 N/mm²；
2.All the tools of production, coatings are used in Germany, Switzerland,  processing equipment；

Operation parameter:

Attention:

1. Make sure work piece and machine are stable and use a precision holder.

2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.

3. The milling conditiongs are for an end mill where the tool overhang length is less than 4*D(mill dia). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
