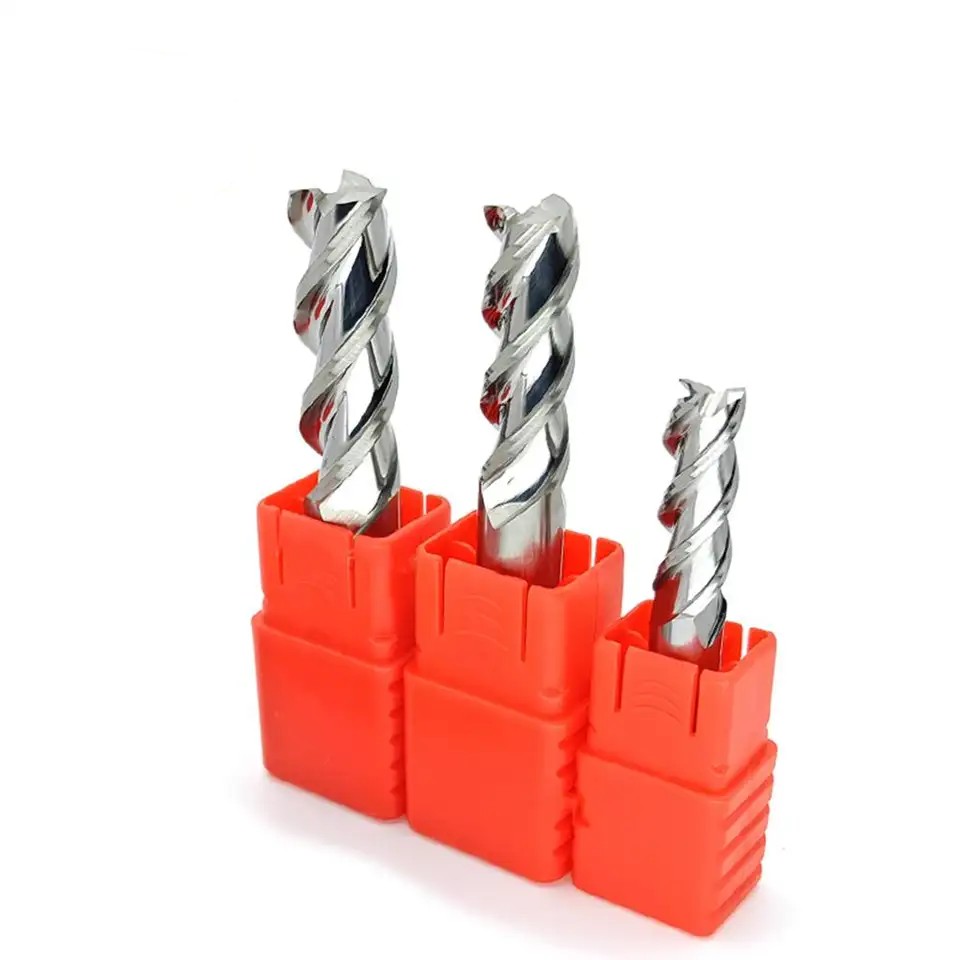

F2 F3 End mill for General Machining aluminum

General Machining Aluminum End Mill

description:

HJA650 F3 F2 End Mill mainly applicable to Aluminum Alloy structural parts, die casting, widely used in 3C industry, small parts, automotive industry and Aluminum Alloy mold processing industry

HJA550 General Machining Aluminum End Mill

Suitable for General Machining Aluminum

Special edge design, reduces vibration, effectively solve the crumbs.

F2 F3

SEND US MAIL

PRODUCT DETAIL

Literal statement:

The processing of the series of cutting tools is mainly applicable to Aluminum Alloy structural parts, die casting, widely used in 3C industry, small parts, automotive industry and Aluminum Alloy mold processing industry; the tool adopts special edge type design, effectively prevent and solve the problem of vibration chip knife edge.

Features:

1、Suitable for aluminum alloy (Si≤12%) and copper alloy (<200HB) general processing.

2、Special edge design, reduces vibration, effectively solve the crumbs.

3、Water cooling is the best cooling method.

undefined

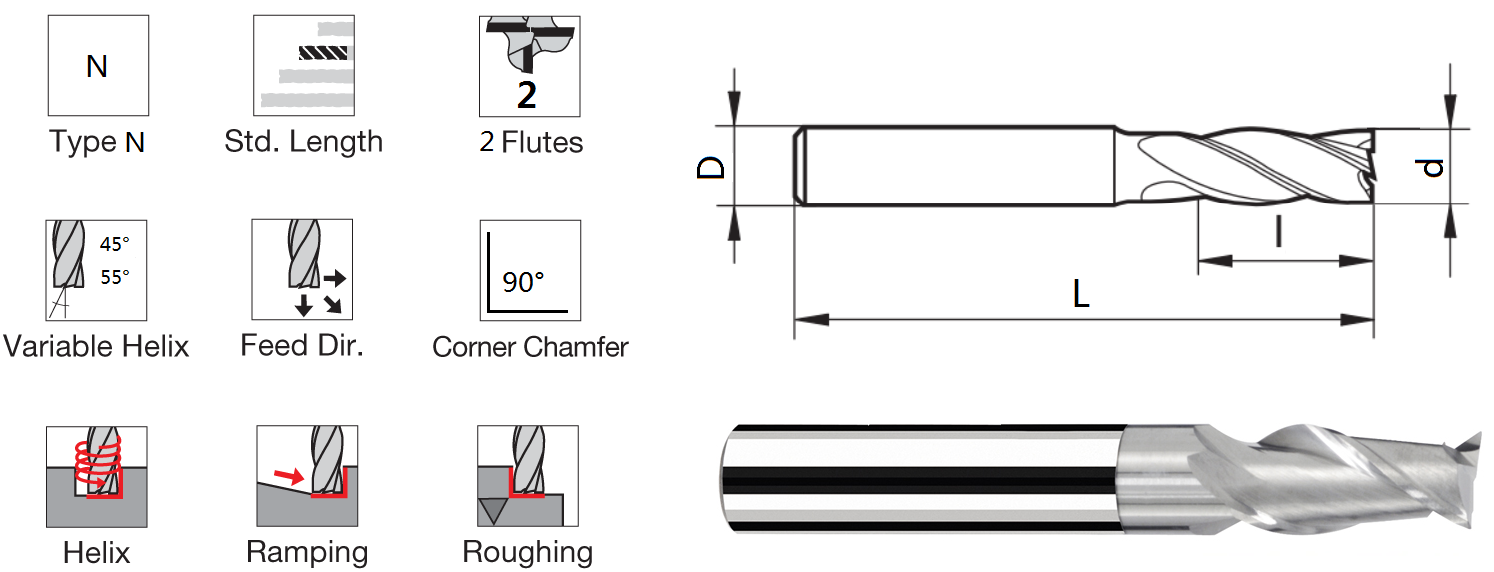

Regular size:

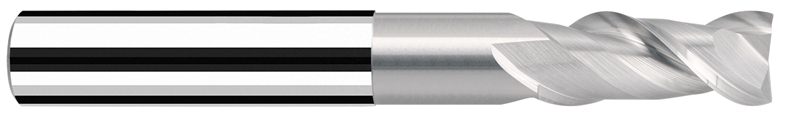

1. Ultrafine particles of 2 flute aluminum End mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA550-0302	3	9.0	50	3
HJA550-0102	1	4.0	50	4
HJA550-0152	1.5	5.0	50	4
HJA550-0202	2	6.0	50	4
HJA550-0252	2.5	7.0	50	4
HJA550-0302	3	9.0	50	4
HJA550-0352	3.5	10.0	50	4
HJA550-0402	4	12.0	50	4
HJA550-0502	5	15.0	50	5
HJA550-0102	1	4.0	50	6
HJA550-0152	1.5	5.0	50	6
HJA550-0202	2	6.0	50	6
HJA550-0302	3	9.0	50	6
HJA550-0402	4	12.0	50	6
HJA550-0502	5	15.0	50	6
HJA550-0602	6	16.0	50	6
HJA550-0802	8	20.0	60	8
HJA550-1002	10	30.0	75	10
HJA550-1202	12	30.0	75	12
HJA550-1402	14	40.0	100	14
HJA550-1602	16	40.0	100	16
HJA550-1802	18	45.0	100	18
HJA550-2002	20	45.0	100	20

2. Ultrafine particles of 2 flute lengthened aluminum end mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA550-0302L	3	15.0	100	3
HJA550-0302L	3	15.0	100	4
HJA550-0402L	4	20.0	100	4
HJA550-0402L	4	20.0	100	6
HJA550-0502L	5	25.0	100	6
HJA550-0602L	6	30.0	100	6
HJA550-0802L	8	35.0	100	8
HJA550-1002L	10	10.0	100	10
HJA550-1202L	12	45.0	100	12
HJA550-0602L	6	45.0	150	6
HJA550-0802L	8	50.0	150	8
HJA550-1002L	10	60.0	150	10
HJA550-1202L	12	60.0	150	12
HJA550-1402L	15	65.0	150	14
HJA550-1602L	16	65.0	150	16
HJA550-1802L	18	70.0	150	18
HJA550-2002L	20	80.0	150	20

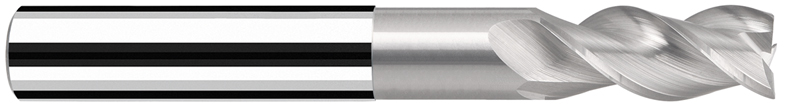

3.Ultrafine particles of 3 flute aluminum end mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA550-0303	3	9	50	3
HJA550-0103	1	4	50	4
HJA550-0153	1.5	5	50	4
HJA550-0203	2	6.0	50	4
HJA550-0253	2.5	7	50	4
HJA550-0303	3	9	50	4
HJA550-0353	3.5	10.0	50	4
HJA550-0403	4	12	50	4
HJA550-0503	5	15	50	5
HJA550-0103	1	4	50	6
HJA550-0153	1.5	5	50	6
HJA550-0203	2	6	50	6
HJA550-0253	2.5	7	50	6
HJA550-0303	3	9	50	6
HJA550-0403	4	12	50	6
HJA550-0503	5	15	50	6
HJA550-0603	6	16	50	6
HJA550-0803	8	20	60	8
HJA550-1003	10	30	75	10
HJA550-1203	12	30	75	12
HJA550-1403	14	40	100	14
HJA550-1553	16	40	100	16
HJA550-1803	18	45	100	18
HJA550-2003	20	45	100	20

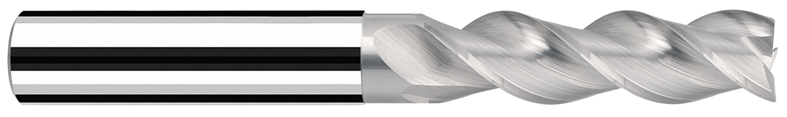

4.Ultrafine particles of 3 flute aluminum lengthened end mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA550-0303L	3	15	100	3
HJA550-0303L	3	15	100	4
HJA550-0403L	4	20	100	4
HJA550-0303L	3	15	100	6
HJA550-0403L	4	20	100	6
HJA550-0503L	5	25	100	5
HJA550-0503L	5	25	100	6
HJA550-0553L	6	30	100	6
HJA550-0803L	8	35	100	8
HJA550-1003L	10	40	100	10
HJA550-1203L	12	45	100	12
HJA550-0553L	6	45	150	6
HJA550-0803L	8	50	150	8
HJA550-1003L	10	60.0	150	10
HJA550-1203L	12	60.0	150	12
HJA550-1403L	14	65	150	14
HJA550-1553L	16	65	150	16
HJA550-1803L	18	70	150	18
HJA550-2003L	20	80	150	20

Tool material composition:

1.Physical Properties:

A) Hardness greater than or equal to 92.6 HRA；

B) Density greater than or equal to 14.4 g/cm³；

C) TRS greater than or equal to 3800 N/mm²；

2.All the tools of production, coatings are used in Germany, Switzerland, processing equipment；

Operation parameter:

HJA550 End mill for aluminum operation parameter:HJA550-2F、SH2、R2、RH2

HJA550 2F、SH2、R2、RH2 For Aluminium A lloy- Side Milling

Grade	Tool shape	Workpiece Material	Cutting depth	VC	Tool Diameter	1	2	4	6	8	10	12	16	20
	2F、SH2、R2、RH2		(mm)	m/min	(mm)
HJA550	square、corner radius	Reflectal,	ap≤1.5D	150 (60-350)	speed	16000	12700	12000	10600	10000	9500	9280	7000	5600
		Cast aluminum alloy			（min-1)
		Si＜12%	ae≤0.2D		feed rate	580	710	1200	1280	1390	1720	2400	2500	2450
					（mm/min)
		Copper alloy	ap≤1.5D	150 (60-350)	speed	16000	12700	12000	10600	10000	9500	9280	7000	5600
		＜HB200			（min-1)
			ae≤0.2D		feed rate	520	650	1070	1150	1250	1550	2170	2250	2200
					（mm/min)

Attention:

Make sure work piece and machine are stable and use a precision holder.
Please adjust the speed,feed and cutting depth according to actual cutting conditions.
The milling conditiongs are for an end mill where the tool overhang length is less than 4*D(mill dia). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.

undefined

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
