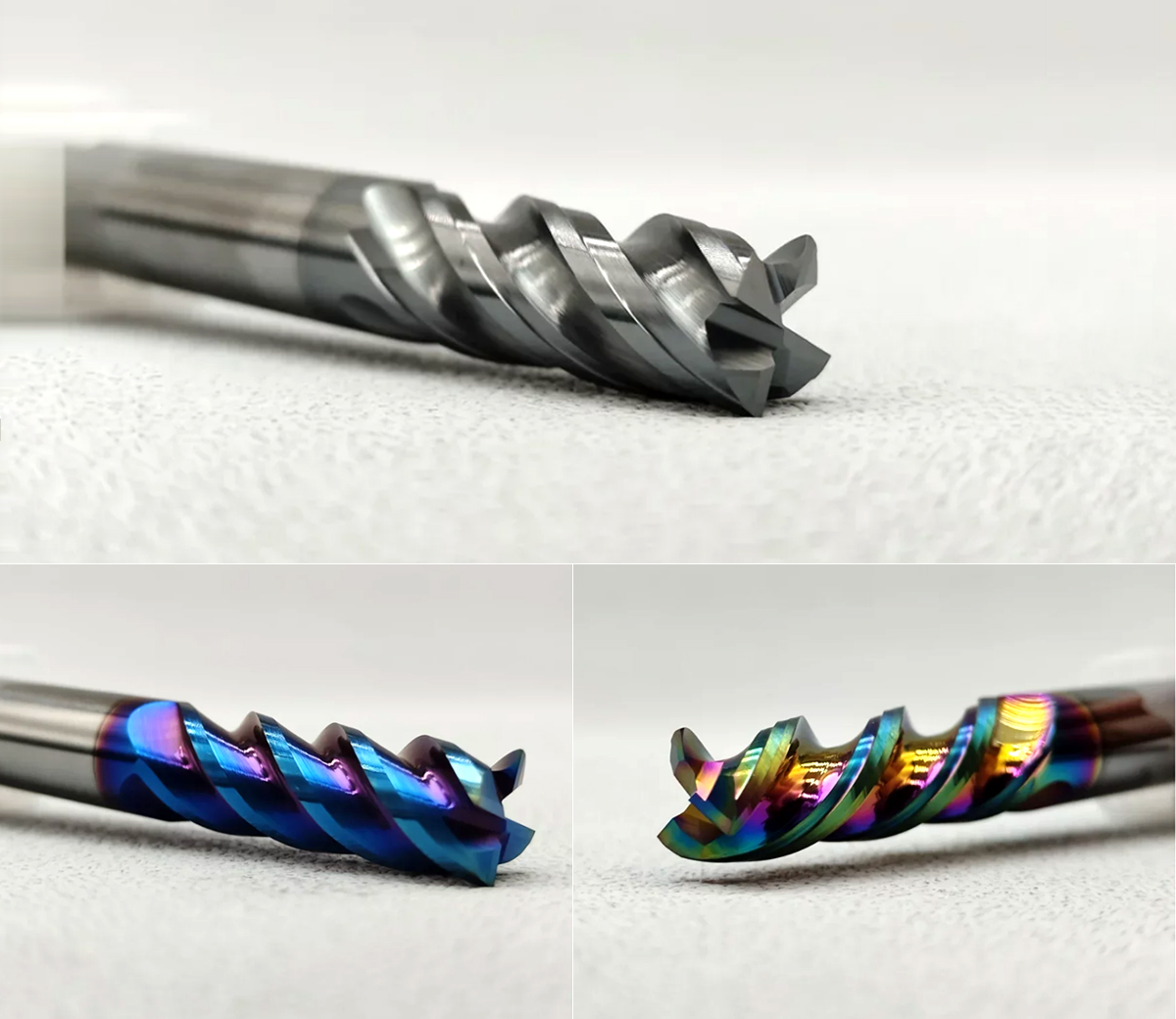

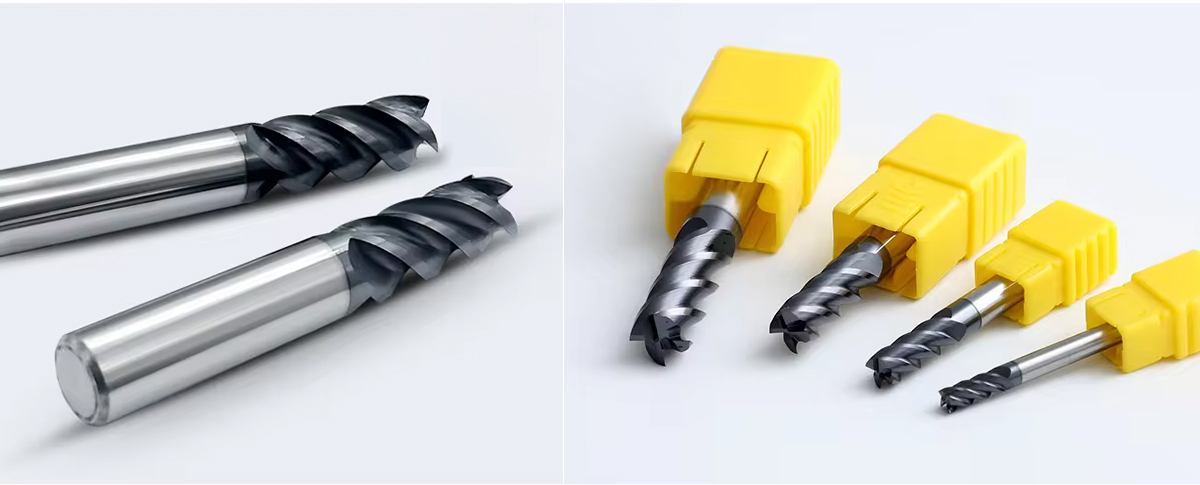

Product Name	Solid Carbide Endmill CNC Cutter Tool For Metal
Material	Tungsten Carbide,Solid Carbide,Cemented Carbide
HRC	55/58/60/65/70
Product Type	Solid Carbide End mills
Coating	AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or as your requirements
Helix Angle	25degree,35degree,45degree,55degree
Size	Metric & Inch Size Based On Your Requirement
Suitable For	Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc.

Product Features:

Max cutting material hardness: HRC60.

100% brand new and high quality.

Material: Tungsten steel, for the needs of all aspects of milling.

Designed for CNC, drilling machine, engraving machine, Copper, stainless steel, cast iron, modulated steel,

tool steel, die steel alloy steel, heat treated hardened steel, etc.

Has a good milling and cutting performance, guarantee the high efficiency of the work.

Professional Carbide End mill Manufacture

Size (standard & non-standard)

Standard:

our standard carbide milling cutters cover the diameter range from 1mm to 20mm meeting the international

manufacturing management and quality standards

Non-Standard:

Our factory can manufacture the non-standard products as per the technology drawing or samples.

Specification
Mill Diameter(mm)	LOC(mm)	Shank Diameter(mm)	OAL(mm)
1	3	4	50
1.5	4.5	4	50
2	6	4	50
2.5	7	4	50
3	8	4	50
4	10	4	50
4	16	4	75
4	20	4	100
5	13	5	50
6	15	6	50
6	25	6	75
6	30	6	100
8	20	8	60
8	25	8	75
8	35	8	100
10	25	10	75
10	40	10	100
12	30	12	75
12	45	12	100
14	40	14	100
16	45	16	100
18	45	18	100
20	45	20	100

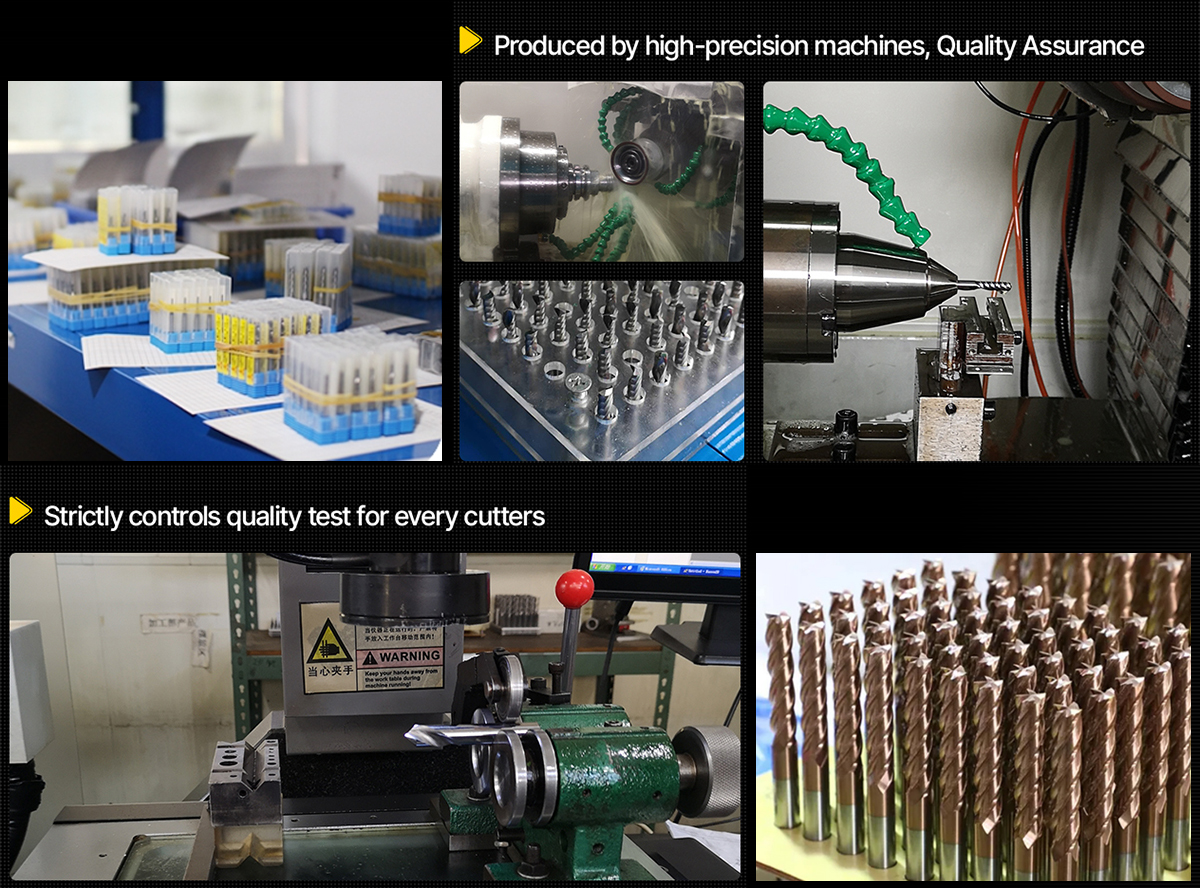

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
