Literal statement:
The tool is mainly suitable for horizontal milling machine deep processing. The products use AlTiN Balzers coating, with superior performance, and high hardness steel less than 65HRC; for the deep cavity machining in mold groove.

Features:

• Suitable for pocket milling of steels & cast iron (≤ 65 HRC).

• Longer neck design, prevents collision with workpeice during deep pocket milling of mold rib areas.

Regular size:

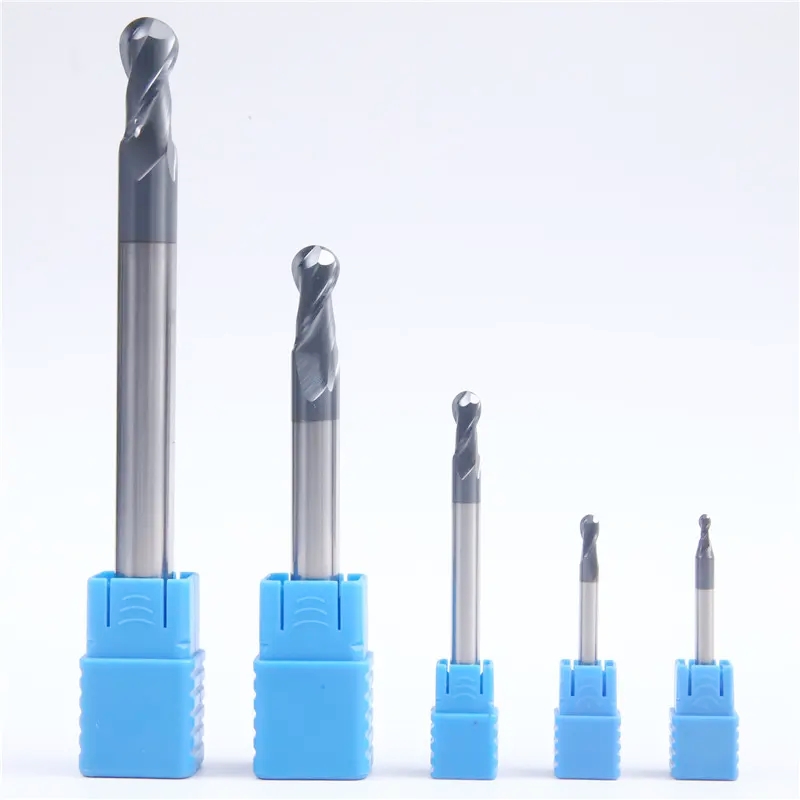

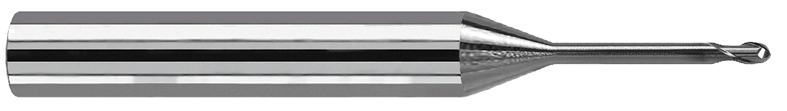

Micro Grain Carbide Diameter 2 Flute Ball Nose End mills:

Ordering code	Outside Diameter	Flute Length	Effective Length	Overall Length	Shank
	（d）	（l）	(Ll)	（L）	Diameter（D）
HJPM650-2F-D0.5-M020	0.5	0.8	2	50	4
HJPM650-2F-D0.5-M040	0.5	0.8	4	50	4
HJPM650-2F-D0.5-M060	0.5	0.8	6	50	4
HJPM650-2F-D0.6-M020	0.6	1.0	2	50	4
HJPM650-2F-D1.0-M060	1.0	1.5	6	50	4
HJPM650-2F-D1.0-M080	1.0	1.5	8	50	4
HJPM650-2F-D1.0-M100	1.0	1.5	10	50	4
HJPM650-2F-D1.5-M060	1.5	2.0	6	50	4
HJPM650-2F-D1.5-M080	1.5	2.0	8	50	4
HJPM650-2F-D1.5-M100	1.5	2.0	10	50	4
HJPM650-2F-D1.5-Ml20	1.5	2.0	12	50	4
HJPM650-2F-D2.0-M080	2.0	2.5	8	50	4
HJPM650-2F-D2.0-M100	2.0	2.5	10	50	4
HJPM650-2F-D2.0-M120	2.0	2.5	12	50	4
HJPM650-2F-D2.0-M140	2.0	2.5	14	50	4
HJPM650-2F-D2.0-M160	2.0	2.5	16	50	4
HJPM650-2F-D2.5-M080	2.5	4.0	8	50	4
HJPM650-2F-D2.5-M120	2.5	4.0	12	50	4
HJPM650-2F-D2.5-M160	2.5	4.0	16	50	4
HJPM650-2F-D2.5-M200	2.5	4.0	20	50	4
HJPM650-2F-D3.0-M100	3.0	4.5	10	50	4
HJPM650-2F-D3.0-M120	3.0	4.5	12	50	4
HJPM650-2F-D3.0-M160	3.0	4.5	16	75	4
HJPM650-2F-D3.0-M200	3.0	4.5	20	75	6
HJPM650-2F-D4.0-M120	4.0	6.0	12	50	6
HJPM650-2F-D4.0-M160	4.0	6.0	16	60	6
HJPM650-2F-D4.0-M200	4.0	6.0	20	75	6
HJPM650-2F-D4.0-M250	4.0	6.0	25	75	6
HJPM650-2F-D4.0-M300	4.0	6.0	30	75	6
HJPM650-2F-D4.0-M350	4.0	6.0	35	75	6

Micro Grain  Carbide Diameter 2 Flute Square End Mills:

Ordering code	Outside Diameter	Flute Length	Overall Length	Shank Diameter
	（d）	（l）	（L）	（D）
HJPM650-2F-D0.3	0.3	0.6	50	3
HJPM650-2F-D0.4	0.4	0.8	50	3
HJPM650-2F-D0.5	0.5	1	50	3
HJPM650-2F-D0.6	0.6	1.2	50	3
HJPM650-2F-D0.7	0.7	1.4	50	3
HJPM650-2F-D0.8	0.8	1.6	50	3
HJPM650-2F-D0.9	0.9	1.8	50	3
HJPM650-2F-D0.3	0.3	0.6	50	4
HJPM650-2F-D0.4	0.4	0.8	50	4
HJPM650-2F-D0.5	0.5	1	50	4
HJPM650-2F-D0.6	0.6	1.2	50	4
HJPM650-2F-D0.7	0.7	1.4	50	4
HJPM650-2F-D0.8	0.8	1.6	50	4
HJPM650-2F-D0.9	0.9	1.8	50	4

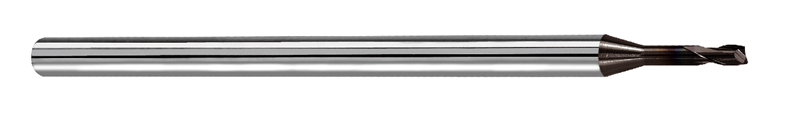

Micro Grain  Carbide Long Neck Short Flute 2 Flute Square End Mills:

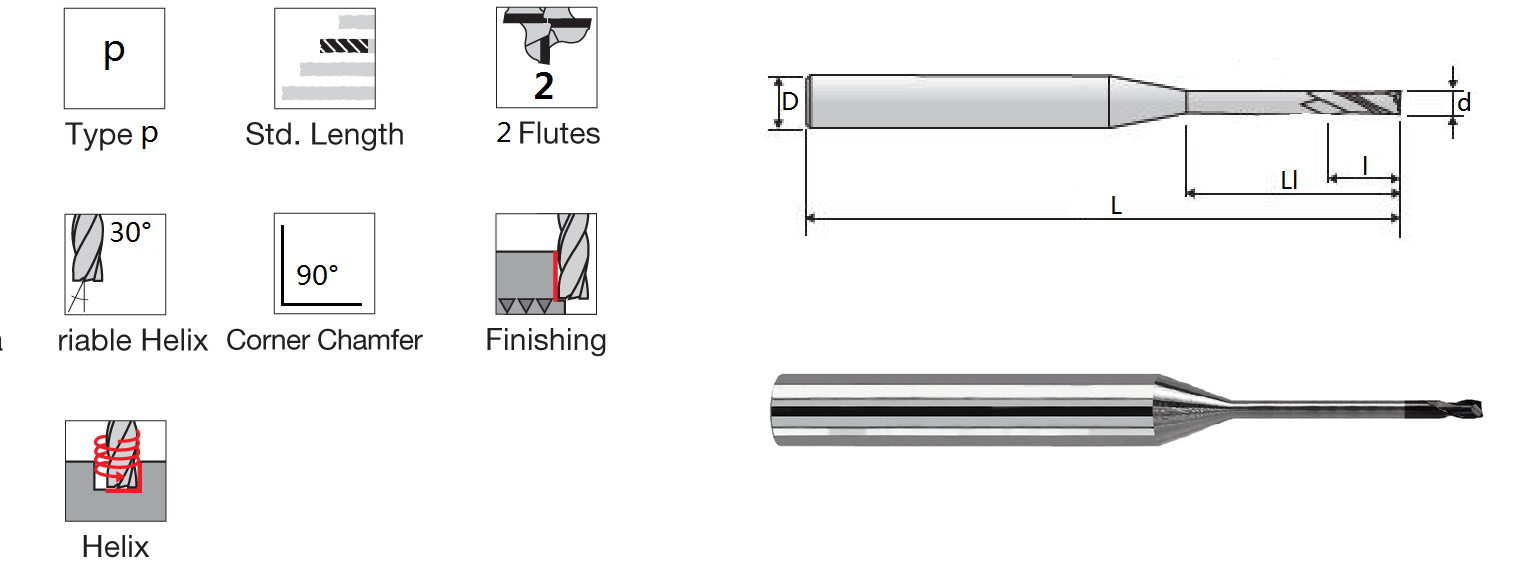

Ordering code	Outside Diameter	Flute Length	Effective Length	Overall Length	Shank
	（d）	（l）	(Ll)	（L）	Diameter（D）
HJPM650-2F-D0.5-M020	0.5	0.8	2	50	4
HJPM650-2F-D0.5-M040	0.5	0.8	4	50	4
HJPM650-2F-D0.5-M060	0.5	0.8	6	50	4
HJPM650-2F-D0.6-M020	0.6	1.0	2	50	4
HJPM650-2F-D1.0-M60	1.0	1.5	6	50	4
HJPM650-2F-D1.0-M080	1.0	1.5	8	50	4
HJPM650-2F-D1.0-M100	1.0	1.5	10	50	4
HJPM650-2F-D1.5-M060	1.5	2.0	6	50	4
HJPM650-2F-D1.5-M080	1.5	2.0	8	50	4
HJPM650-2F-D1.5-M100	1.5	2.0	10	50	4
HJPM650-2F-D1.5-M120	1.5	2.0	12	50	4
HJPM650-2F-D2.0-M080	2.0	2.5	8	50	4
HJPM650-2F-D2.0-M100	2.0	2.5	10	50	4
HJPM650-2F-D2.0-M120	2.0	2.5	12	50	4
HJPM650-2F-D2.0-M140	2.0	2.5	14	50	4
HJPM650-2F-D2.0-M160	2.0	2.5	16	50	4
HJPM650-2F-D2.5-M080	2.5	4.0	8	50	4
HJPM650-2F-D2.5-M120	2.5	4.0	12	50	4
HJPM650-2F-D2.5-M160	2.5	4.0	16	50	4
HJPM650-2F-D2.5-M200	2.5	4.0	20	50	4
HJPM650-2F-D3.0-M100	3.0	4.5	10	50	4
HJPM650-2F-D3.0-M120	3.0	4.5	12	50	4
HJPM650-2F-D3.0-M160	3.0	4.5	16	75	4
HJPM650-2F-D3.0-M200	3.0	4.5	20	75	6
HJPM650-2F-D4.0-M120	4.0	6.0	12	50	6
HJPM650-2F-D4.0-M160	4.0	6.0	16	60	6
HJPM650-2F-D4.0-M200	4.0	6.0	20	75	6
HJPM650-2F-D4.0-M250	4.0	6.0	25	75	6
HJPM650-2F-D4.0-M300	4.0	6.0	30	75	6
HJPM650-2F-D4.0-M350	4.0	6.0	35	75	6

Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 94 HRA；
b. Density greater than or equal to 14.6g/cm³；
c. TRS greater than or equal to 4100 N/mm²；
d. Free of ETA phase condition；
e. No contamination by other materials；
f. Porosity = A00/ B00 / C00 ；
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland,  processing equipment；
3. It's proposed cutting less than 65HRC;

Coating:
Universal High Performance Coating AlCrSiN：
Characteristics and Function
1、Productivity increase due to significantly higher cutting speed and feed for applications in a wide range of materials.Significantly enhanced productivity.
2、Particular design of structure brings good balance between toughness,thermo-shock stability and residual stress.
