Literal statement:

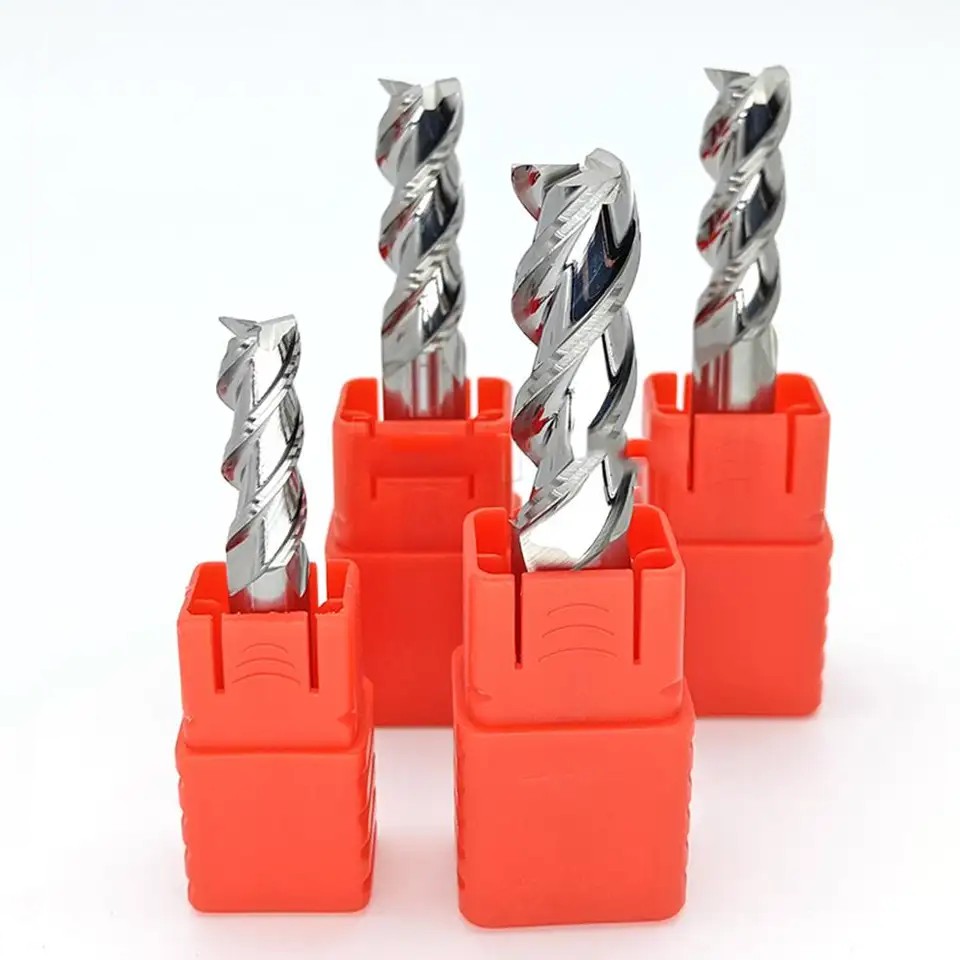

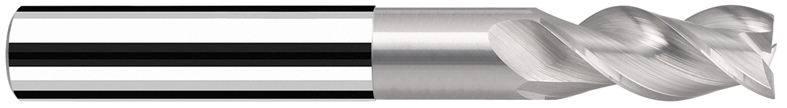

The Aero-Tech three-flute design has been developed for cost efficient machining of general steels, stainless steel, high alloyed steels as well as titanium and nickel alloys. All Aero-Tech End mills have micro corner protection for extended tool life. Available in coated or bright finished as stocked standards.
Feature:

• Suitable for high speed machining of aerospace aluminum alloys

• Ultra-fine cemented carbide, high wear resistance and toughness.

• Special symmetry design and precision with balance N=25000RPM, G2.0 good for high speed cutting.

• HJA650 the feature inner coolant holes that provides more effective cooling action with cutting zone for high speed machining.

• Unique sharp cutting edges provide increased performance in smoothness efficiency and finishing.

• Extremely high efficient  cavity milling with metal remove rate up to 800cc/min.

Regular size:

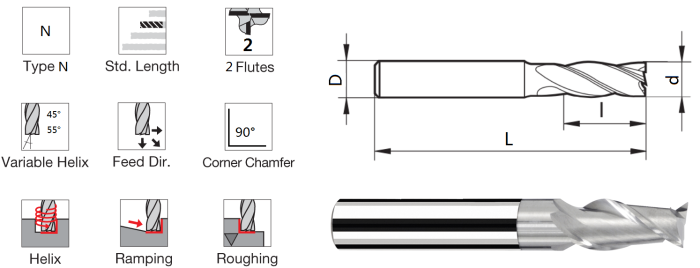

1. Ultrafine particles of 2 flute aluminum end mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA650-0302	3	9.0	50	3
HJA650-0102	1	4.0	50	4
HJA650-0152	1.5	5.0	50	4
HJA650-0202	2	6.0	50	4
HJA650-0252	2.5	7.0	50	4
HJA650-0302	3	9.0	50	4
HJA650-0352	3.5	10.0	50	4
HJA650-0402	4	12.0	50	4
HJA650-0502	5	15.0	50	5
HJA650-0102	1	4.0	50	6
HJA650-0152	1.5	5.0	50	6
HJA650-0202	2	6.0	50	6
HJA650-0302	3	9.0	50	6
HJA650-0402	4	12.0	50	6
HJA650-0502	5	15.0	50	6
HJA650-0620	6	18.0	50	6
HJA650-0802	8	20.0	60	8
HJA650-1002	10	30.0	75	10
HJA650-1202	12	30.0	75	12

2.Ultrafine particles of  3 flute aluminum end mills

Ordering code	Diameter	Flute length	O.A.L.	Shank Dia.
HJA650-0303	3	9	50	3
HJA650-0103	1	4	50	4
HJA650-0153	1.5	5	50	4
HJA650-0203	2	6.0	50	4
HJA650-0253	2.5	7	50	4
HJA650-0303	3	9	50	4
HJA650-0353	3.5	10.0	50	4
HJA650-0403	4	12	50	4
HJA650-0503	5	15	50	5
HJA650-0103	1	4	50	6
HJA650-0153	1.5	5	50	6
HJA650-0203	2	6	50	6
HJA650-0253	2.5	7	50	6
HJA650-0303	3	9	50	6
HJA650-0403	4	12	50	6
HJA650-0503	5	15	50	6
HJA650-0603	6	18	50	6
HJA650-0803	8	20	60	8
HJA650-1003	10	30	75	10
HJA650-1203	12	30	75	12

Tool material composition:
1. Physical Properties:
A) Hardness greater than or equal to 94 HRA；
B) Density greater than or equal to 14.6g/cm³；
C) TRS greater than or equal to 4100 N/mm²；
2. All the tools of production, coatings are used in Germany, Switzerland,  processing equipment；

Operation parameter:

HJA650 operation parameter of end mill for aerospace aluminum alloy:HJA650-RN2
HJA650 RN2 For Aerospace Aluminium Alloy-Side Milling
Grade	Tool shape	Workpiece Material	Cutting depth	VC	Tool Diameter	10	12	16	20
	RN2		(mm)	m/min	(mm)
HJA650		Aluminium alloy    7075,7050（Si＜6％）	ap≤0.25D	400	speed	12000	10000	8000	7000
				(300-500)	（min-1)
			ae≤0.5		feed rate	3600	3300	3200	3080
					（mm/min)

Attention:

1. Make sure work piece and machine are stable and use a precision holder.

2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.

3. The milling conditiongs are for an end mill where the tool overhang length is less than 4*D(mill dia). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
