Product Description：

We make this carbide End mill for rough machining which require large amount of cutting. It can works under high speed cutting and has very good capacity of chip removal. It’s mainly used for common material roughing like cast iron, mould steel, steel, alloy steel.

Feature

1.First-class precision machine tools are used to grind out the edge angle, large core diameter design to enhance rigidity and vibration resistance, large chip space is not easy to accumulate chips, not easy to collapse the knife, sharp and wear-resistant, smooth cutting, improve cutting efficiency.

2.Wave edge design, large chip discharge, metal cutting more smoothly large feed, large tool travel, increase production efficiency.

3.The use of particle tungsten steel base material has high wear resistance and strength, reducing the number of tool changes, increasing the machine cranking rate and improving work efficiency.

Product name	Roughing End Mill
Material	Tungsten carbide
Model	Standard
Flutes	3f/4f flutes
Coating	AlTiN, TiAIN,TiSiN,nACo,etc
HRC	55/60/65
Shank diameter	4-20mm
whole length	50-150mm
Helix angle	35/45 degree
Application	for common material roughing like cast iron, mould steel, steel, alloy steel.
Machine type	CNC Milling Machine, Engraving machine,High speed machine,etc

Our advantages:

Professional team for production: Have more than 10 years experience for production on carbide filed.

Fast delivery based on high production capability.

Strict quality control system: Ensure our product in good and stable quality.

Rich experience on customized products.

Technical support: Help you get the best solution.

Professional Carbide End Mill Manufacture

Size (standard & non-standard)

Standard:

our standard carbide milling cutters cover the diameter range from 4mm to 16mm meeting the international manufacturing management and quality standards

Non-Standard:

Our factory can manufacture the non-standard products as per the technology drawing or samples.

• Regular size:

• Specification
  Mill Diameter(mm)	LOC(mm)	Shank Diameter(mm)	OAL(mm)
  4	10	4	50
  5	15	5	50
  6	15	6	50
  8	20	8	60
  10	25	10	75
  12	30	12	75
  6	15	6	100
  8	20	8	100
  10	25	10	100
  12	30	12	100
  14	35	14	100
  16	40	16	100
  18	40	18	100
  20	40	20	100
  16	40	16	150

• -Express companies: DHL, FedEx, TNT, UPS, etc.

• -Airlines.

• -Ocean shipping

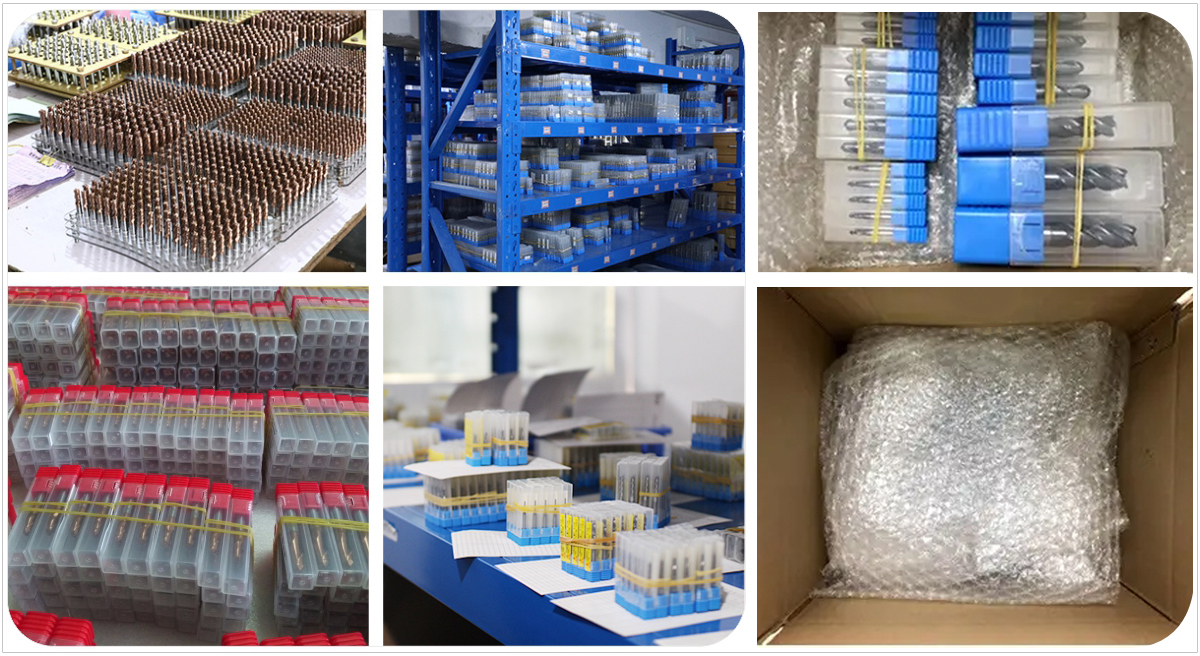

• A. Standard packing

• -Plastic boxes with foam inside and carton outside.

• -Paper boxes with foam inside and carton outside.

• -Inner boxes/packing material inside and plywood box outside (for heavy product).
