HJEK550 Flat bottom engraving bits
Application: Acrylic, PVC,PE,Nylon,Aluminum composite panel,cork wood ,Two-color,plate,Acrylic,PVC,Hardwood,MDF
cutting,engraving,milling,relief,etc
Material : tungsten carbide

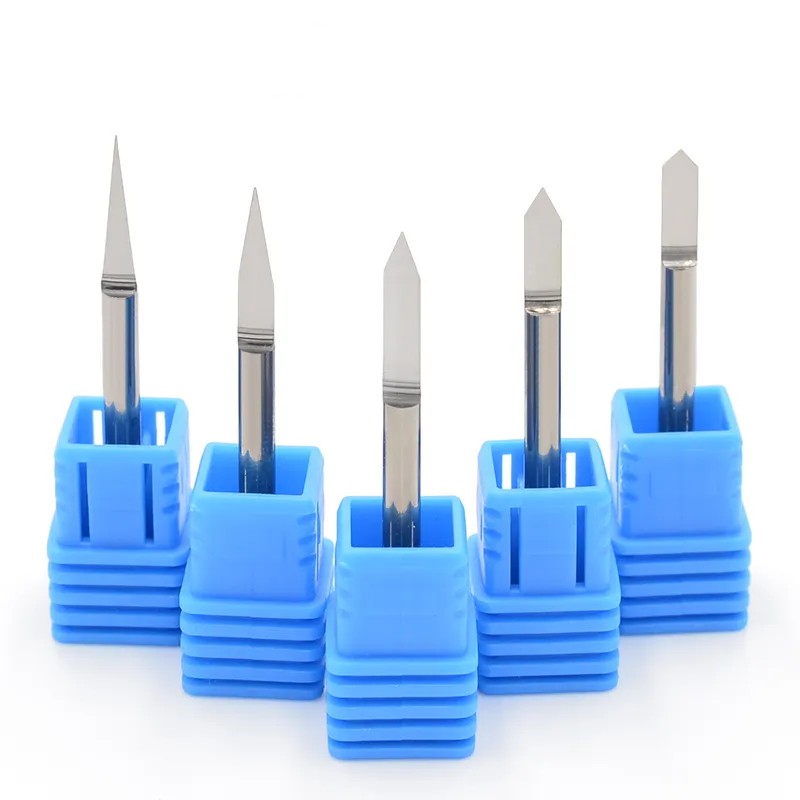

Name | Solid Carbide V Shape Engraving Bit |
Material | Carbide Engraving Bit Sharpening Tools |
Color | Tungsten white |
Standard | Standard Size or Customized |
Precision | High Precision |
Suitable for | Engrave and mark a wide range of materials such as steel, stainless steel, aluminium, wood, resin, plastics, acrylics and soft metals. |

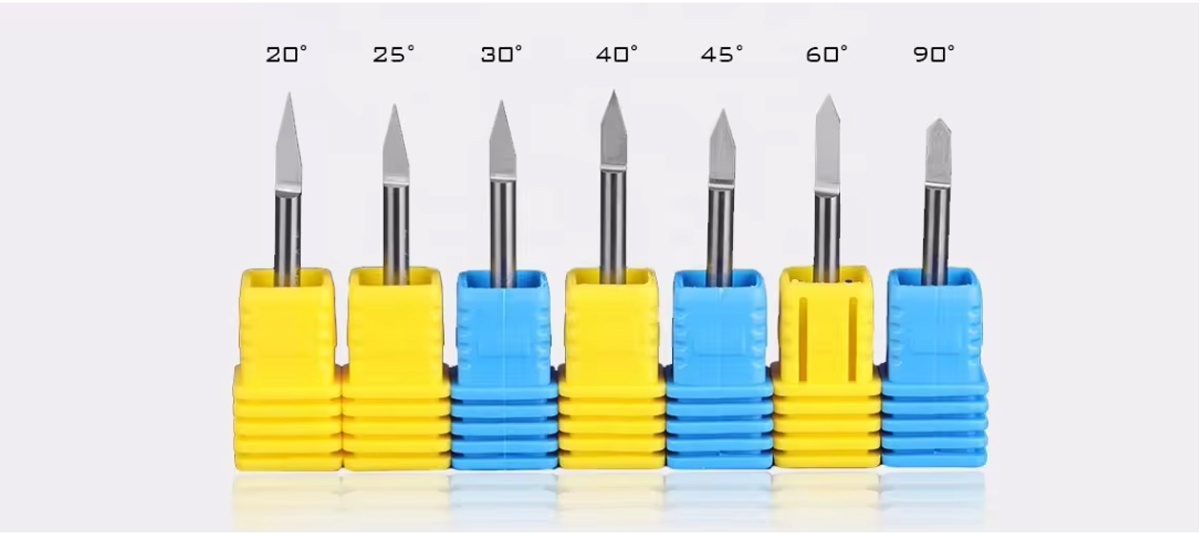

Advantages | The small angles and tips provided on these V-shaped engraving bits produce narrow cuts and small, delicate engraving of lettering and lines. |
product description:
We carry a wide variety of engraving cutters in many sizes and shapes. The most popular are the half round type cutters. These engraving tools can be used in a variety of applications from engraving plastic to engraving stainless steel. For plastic engraving we recommend a 50 degree or 60 degree cutter. Click on the tool sizes below for prices and descriptions.Be sure to select a tip size.The tip size will determine how wide your line is, for small character engraving choose a smaller tip size.
Product Advantage:
Material Carefully selected high-quality raw materials, and quality inspection, to ensure compliance with the market data and 、customer demand for quality tungsten steel bar material products, advanced equipment,precision machining, good performance.Blade sharp and durable, cutting removal, smooth, efficient, no burr, non stick knife, tool point concentricity, excellent performance High Wear resistance High Wear resistance:the tool has high bending strength and high wear resistance, tough and long service life
Regular size:

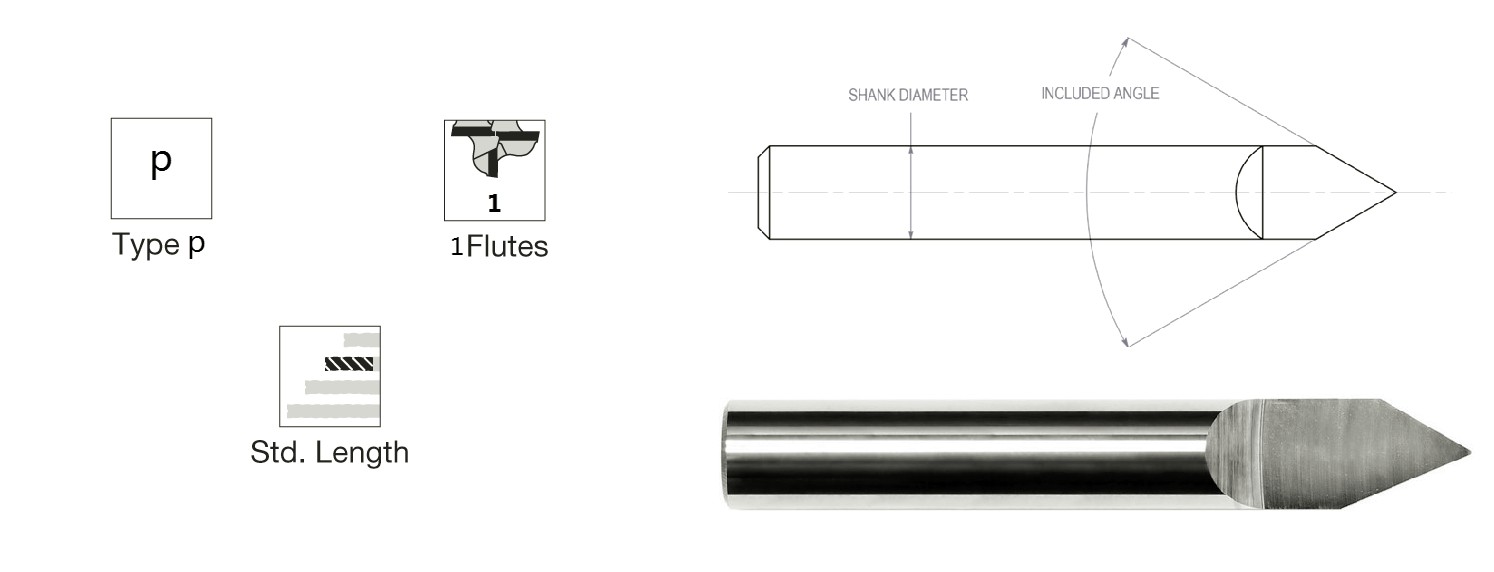

Ordering code | Tip W | Angle A | Shank Diameter D | Overall Length L |
HJEK550 051001 | 0.1 | 10 | 3.175 | 38.5 |
HJEK550-051002 | 0.2 | 10 | 3.175 | 38.5 |
HJEK550-051003 | 0.3 | 10 | 3.175 | 38.5 |
HJEK550-051501 | 0.1 | 15 | 3.175 | 38.5 |
HJEK550-051502 | 0.2 | 15 | 3.175 | 38.5 |
HJEK550-051503 | 0.3 | 15 | 3.175 | 38.5 |
HJEK550-052001 | 0.1 | 20 | 3.175 | 38.5 |
HJEK550-052002 | 0.2 | 20 | 3.175 | 38.5 |
HJEK550-052003 | 0.3 | 20 | 3.175 | 38.5 |
HJEK550-053001 | 0.1 | 30 | 3.175 | 38.5 |
HJEK550-053002 | 0.2 | 30 | 3.175 | 38.5 |
HJEK550-053003 | 0.3 | 30 | 3.175 | 38.5 |
HJEK550-053004 | 0.4 | 30 | 3.175 | 38.5 |
HJEK550-053005 | 0.5 | 30 | 3.175 | 38.5 |
HJEK550-053006 | 0.6 | 30 | 3.175 | 38.5 |
HJEK550-053008 | 0.8 | 30 | 3.175 | 38.5 |
HJEK550-053010 | 1 | 30 | 3.175 | 38.5 |
HJEK550-053015 | 1.5 | 30 | 3.175 | 38.5 |
HJEK550-053020 | 2 | 30 | 3.175 | 38.5 |
HJEK550-054501 | 0.1 | 45 | 3.175 | 38.5 |
HJEK550-054502 | 0.2 | 45 | 3.175 | 38.5 |
HJEK550-054503 | 0.3 | 45 | 3.175 | 38.5 |
HJEK550-054505 | 0.5 | 45 | 3.175 | 38.5 |
HJEK550-056001 | 0.1 | 60 | 3.175 | 38.5 |
HJEK550-056002 | 0.2 | 60 | 3.175 | 38.5 |
HJEK550-056003 | 0.3 | 60 | 3.175 | 38.5 |
HJEK550-056004 | 4 | 60 | 3.175 | 38.5 |
HJEK550-056005 | 0.5 | 60 | 3.175 | 38.5 |
HJEK550-059001 | 0.1 | 90 | 3.175 | 38.5 |
HJEK550-059002 | 2 | 90 | 3.175 | 38.5 |
HJEK550-059003 | 3 | 90 | 3.175 | 38.5 |
HJEK550-0542001 | 0.1 | 20 | 4 | 45 |
HJEK550 0S42002 | 2 | 20 | 4 | 45 |
HJEK550-0542003 | 3 | 20 | 4 | 45 |
HJEK550-0543001 | 0.1 | 30 | 4 | 40 |
HJEK550-0543002 | 0.2 | 30 | 4 | 40 |
HJEK550-0543003 | 3 | 30 | 4 | 40 |
HJEK550-0543004 | 4 | 30 | 4 | 40 |
HJEK550-0543005 | 5 | 30 | 4 | 40 |
HJEK550-0543006 | 0.6 | 30 | 4 | 40 |
HJEK550-0543008 | 0.8 | 30 | 4 | 40 |
HJEK550-0544501 | 0.1 | 45 | 4 | 40 |
HJEK550-0S44502 | 0.2 | 45 | 4 | 40 |
HJEK550-0544503 | 0.3 | 45 | 4 | 40 |
HJEK550-0944504 | 0.4 | 45 | 4 | 40 |
HJEK550-0544505 | 0.5 | 45 | 4 | 40 |
HJEK550-0544506 | 0.6 | 30 | 4 | 40 |
HJEK550-0546001 | 0.1 | 60 | 4 | 40 |
HJEK550-0546002 | 0.2 | 60 | 4 | 40 |
HJEK550-0546003 | 0.3 | 60 | 4 | 40 |
HJEK550-0546004 | 0.4 | 60 | 4 | 40 |
HJEK550-0549001 | 0.1 | 90 | 4 | 40 |
HJEK550-0549002 | 0.2 | 90 | 4 | 40 |
HJEK550-0549003 | 0.3 | 90 | 4 | 40 |
HJEK550-0562001 | 0.1 | 20 | 6 | 50 |
HJEK550-0562002 | 0.2 | 20 | 6 | 50 |
HJEK550-0562003 | 0.3 | 20 | 6 | 50 |
HJEK550-0563001 | 0.1 | 30 | 6 | 45 |
HJEK550-0563002 | 0.2 | 30 | 6 | 45 |
HJEK550-0563003 | 0.3 | 30 | 6 | 45 |
HJEK550-0564501 | 0.1 | 45 | 6 | 45 |
HJEK550-0564502 | 0.2 | 45 | 6 | 45 |
HJEK550-0564503 | 0.3 | 45 | 6 | 45 |
HJEK550-0566001 | 0.1 | 60 | 6 | 45 |
HJEK550-0566002 | 0.2 | 60 | 6 | 45 |
HJEK550-0566003 | 0.3 | 60 | 6 | 45 |
HJEK550-0569001 | 0.1 | 90 | 6 | 45 |
HJEK550-0569002 | 0.2 | 90 | 6 | 45 |
HJEK550-0569003 | 0.3 | 90 | 6 | 45 |
HJEK550-05612001 | 0.1 | 120 | 6 | 45 |
HJEK550-05612002 | 0.2 | 120 | 6 | 45 |
HJEK550-0589001 | 0.1 | 90 | 8 | 50 |
HJEK550-0589002 | 0.2 | 90 | 10 | 50 |
HJEK550-05129001 | 0.1 | 90 | 12 | 50 |
HJEK550-05129002 | 0.2 | 90 | 12 | 50 |
HJEK550-05149001 | 0.1 | 90 | 14 | 50 |
HJEK550-05149002 | 0.2 | 90 | 14 | 50 |
The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
