Products Description

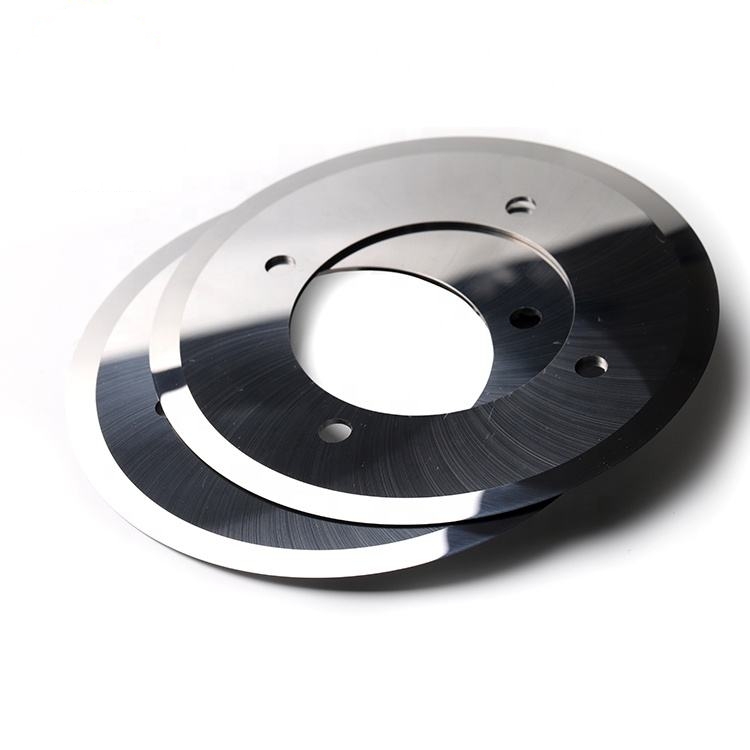

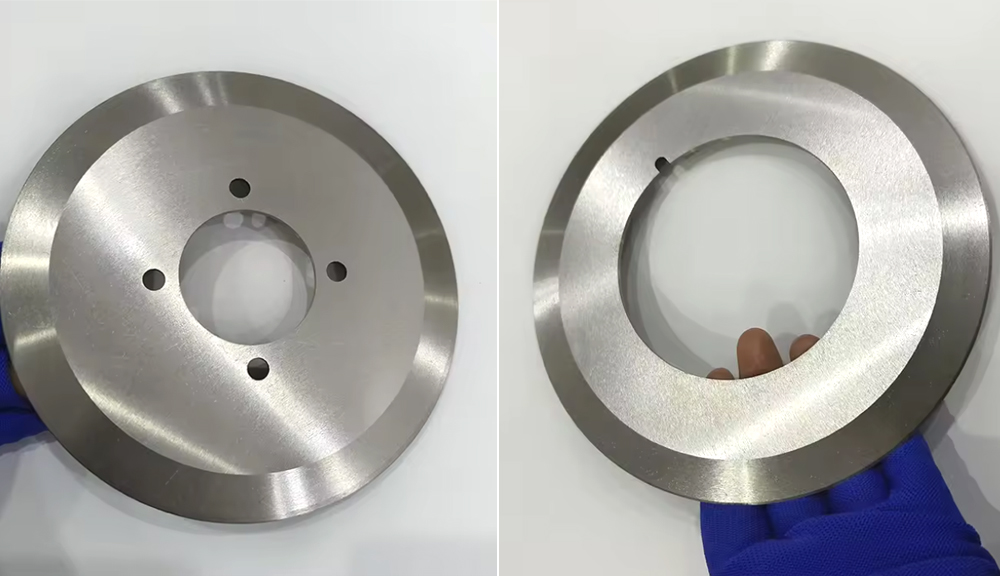

cemented carbide tungsten steel round blade product advantage:

1.Smooth surface, high-precision grinding of cutting edges

2.Smooth cutting of sharp blades without burrs

3.Chip removal is more smoother

4.High-precision mirror grinding technology, chip removal is smooth, not easy to break the tip, and no chipping

5.Customized Products are available.

We produce not only the standard items, but also the customized terms according to drawing.

What is our carbide blade application?

The carbide circular blades for Slitting Corrugated Board, carbide rotary blade for rubbers cutting, carbide blade for

battery industry, carbide blades for Tobacco Machines, carbide circuit board cutting knife,  carbide blades for

metal cutting, carbide knife for Rewinder machines, carbide blades for chemical fiber cutting, carbide blades for

printing industry, carbide milling cutter for paper industry, and carbide blades for other special range.

Our advantages:

1. Our Cutting Knives and Discs can be supplied with either a standard ground or highly polished cutting

edge depending on the material to be cut and/or the lifetime required of the tool.

2. Our dedicated team of technical project managers are all highly qualified and experienced. We can help to

develop the cutting profile and product best suited to your needs.

3. Our careful selection of materials the life of existing knives can be extended to reduce the downtime of tooling changes.

Let our experience take the guess work out of the job of specifying the most suitable product for your purpose.

Whatever you are cutting, use huijin Carbide Tools for reliable, professional service and high quality products.

Quality control:

1.All raw materials are tested in terms of density, hardness and TRS before use

2.Every piece of product goes through in-process and final inspection

3.Every batch of product can be traced

material grade :

Grade	Grain size      (um)	Cobalt content (100%)	Density (g/cm3)	Hardness (HRA)	T.R.S        (N/mm2)
YG6X	0.8-1.2	6	14.8	91	2000
YG10X	0.8-1.2	10	14.42	91.8	4000
YG12X	0.8-1.2	12	14.5	89.5	2600

Material grade	Tungsten Carbide YG10X, YG13X, OEM
Thickness	0.2-6mm or customized
Flatness	0.003mm
Type of edge	single edge, double edge
HRA	85-93
Straightness	<0.1
Surface roughness	Ra0.2
Laser engraving	Done as requirement

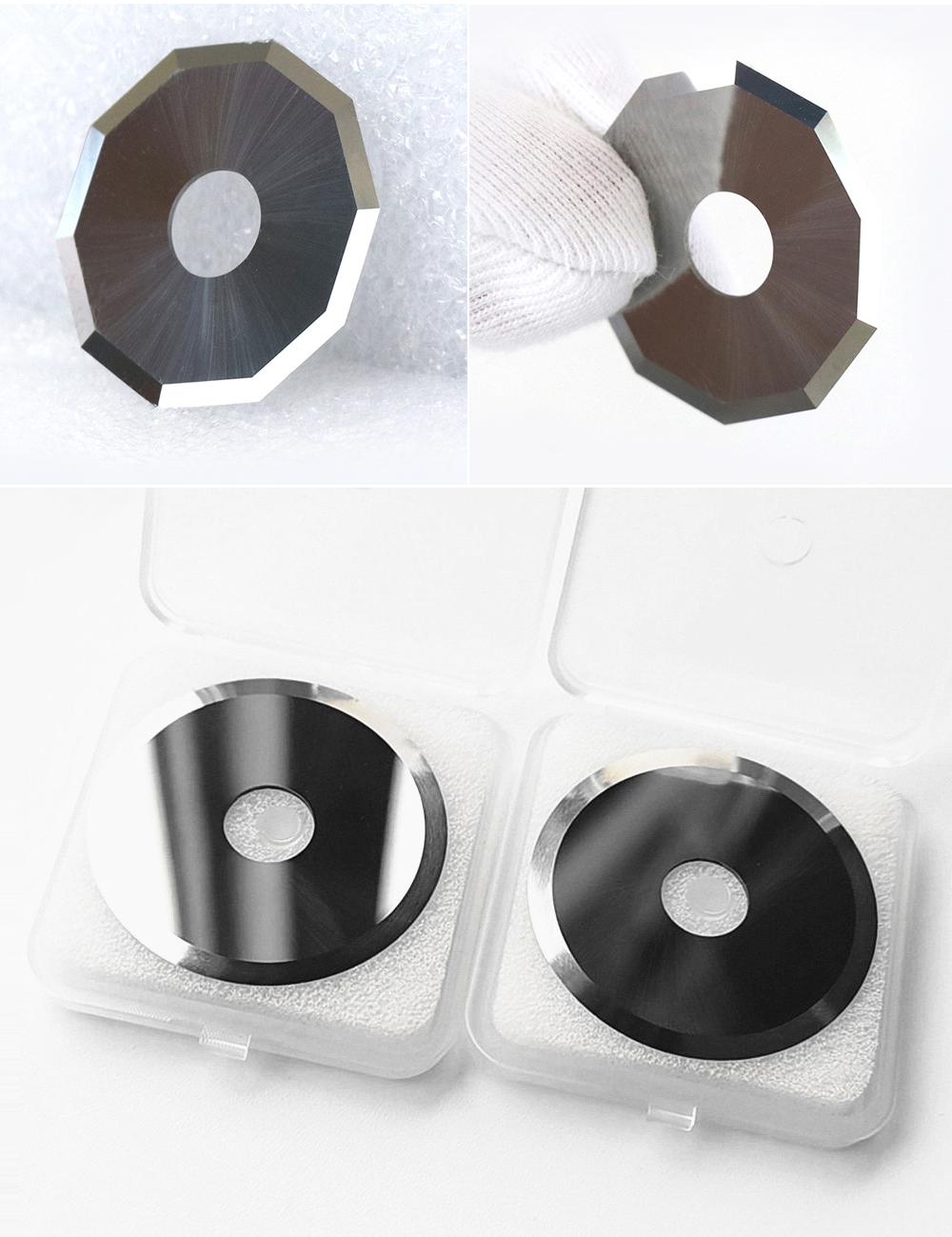

Package	4 pcs/set,Simple packing/Plastic box   packing/Blister packing
Main Size	OD(mm)	ID(mm)	Thickness(mm)	Cutting Edge
	300	112	1.4	double
	280	168	1.4	double
	265	112	1.3	double
	260	168	1.4	double
	260	140	1.4	double
	240	132	1.2	double
	230	110	1.3	double
	140	46	0.5	single
	100	16	0.3	single
	85	16	0.25	single
	60	19	0.27	single
Size	Can be customized according to customer   requirements
Advantages	1, High quality raw materials.
	2. Durable & Long   service life.
	3. High precision.
	4. Nice and solid   packaging.
	5. Excellent weather resistance   and waterproof.
Application	For paperboard/paper/cardboard/carton/Tobacco machine   to cut.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
