Metal Cutting Inserts
Metal Cutting Inserts
Product name: Metal Cutting Inserts
Series: WNMG Turning Inserts
Chip-Breakers: AM/AR/BF/BM/BR/CM/DM/
Product Information:

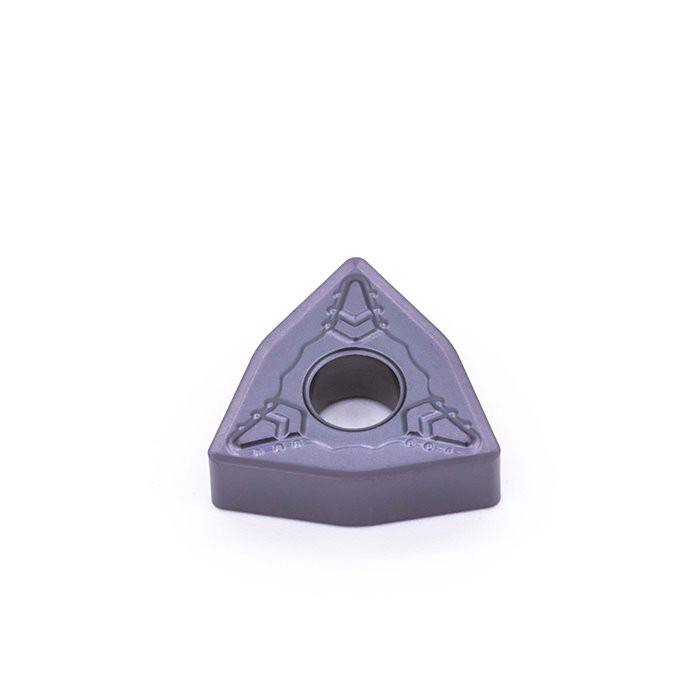

WNMG Turning Inserts 80° Insert double-sided inserts with negative (0°) relief angle, offering a strong edge for general applications and varying depths of cut dependent on chip breaker type across most materials. WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades.it’s highly economical choice for your production, since they are made symmetrically, so that when the one cutting edge is worn they can rotate to another edge.
Specifications：
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK4235 | JK4335 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | ||||
P Semi Finishing | WNMG080404-AM | 0.60-4.30 | 0.10-0.30 | • | O | • | O | O | |||||||
WNMG080408-AM | 1.20-4.30 | 0.20-0.60 | • | O | • | O | O | ||||||||
WNMG080412-AM | 1.80-4.30 | 0.30-0.90 | • | O | • | O | O | ||||||||
WNMG080416-AM | 2.40-4.30 | 0.40-1.20 | • | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4215 | JK4225 | JK4325 | JK4235 | JK4335 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | ||||
P Rough Machining | WNMG060408-AR | 0.80-4.00 | 0.15-0.50 | • | O | ||||||||||
WNMG060412-AR | 0.80-4.00 | 0.15-0.50 | • | O | |||||||||||
WNMG080408-AR | 0.80-4.50 | 0.15-0.55 | • | O | |||||||||||
WNMG080412-AR | 0.80-4.50 | 0.20-0.55 | • | O | |||||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1525 | JR1330 | ||||
M Finishing | WNMG060404-BF | 0.25-2.40 | 0.05-0.15 | • | • | O | O | ||||||||
WNMG060408-BF | 0.50-2.40 | 0.10-0.30 | • | • | O | O | |||||||||
WNMG080404-BF | 0.25-3.20 | 0.05-0.15 | • | • | O | O | |||||||||
WNMG080408-BF | 0.50-3.20 | 0.10-0.30 | • | • | O | O | |||||||||
WNMG080412-BF | 0.75-3.20 | 0.15-0.45 | • | • | O | O | |||||||||
WNMG080416-BF | 1.05-3.20 | 0.20-0.60 | • | • | O | O | |||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1525 | JR1330 | ||||
M Semi Finishing | WNMG060404-BM | 0.30-2.10 | 0.10-0.30 | O | O | • | O | O | |||||||
WNMG060408-BM | 0.65-2.10 | 0.15-0.45 | O | O | • | O | O | ||||||||
WNMG080404-BM | 0.30-2.90 | 0.10-0.30 | O | O | • | O | O | ||||||||
WNMG080408-BM | 0.65-2.90 | 0.15-0.45 | O | O | • | O | O | ||||||||
WNMG080412-BM | 0.95-2.90 | 0.20-0.60 | O | O | • | O | O | ||||||||
WNMG080416-BM | 1.25-2.90 | 0.25-0.75 | O | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1528 | JR1330 | ||||
M Rough Machining | WNMG060404-BR | 0.30-2.10 | 0.10-0.30 | O | O | O | • | • | O | ||||||
WNMG060408-BR | 0.65-2.10 | 0.15-0.45 | O | O | O | • | • | O | |||||||
WNMG080404-BR | 0.30-2.90 | 0.10-0.30 | O | O | O | • | • | O | |||||||
WNMG080408-BR | 0.65-2.90 | 0.15-0.45 | O | O | O | • | • | O | |||||||
WNMG080412-BR | 0.95-2.90 | 0.20-0.60 | O | O | O | • | • | O | |||||||
WNMG080416-BR | 1.25-2.90 | 0.25-0.75 | O | O | O | • | • | O | |||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||
CVD | |||||||
JK3020 | JK3040 | JK3315 | JK3415 | ||||
K Semi Finishing | WNMG080404-CM | 0.08-0.25 | 0.40-2.90 | • | • | ||
WNMG080408-CM | 0.15-0.45 | 0.80-2.90 | • | • | |||
WNMG080412-CM | 0.25-0.66 | 1.20-2.90 | • | • | |||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
| CVD | PVD | |||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1520 | JR1525 | JR1028 | JR1330 | ||||
S Semi Finishing | WNMG080404-DM | 0.40-4.30 | 0.08-0.25 | O | O | O | • | • | O | O | ||||||
WNMG080408-DM | 0.80-4.30 | 0.15-0.45 | O | O | O | • | • | O | O | |||||||
WNMG080412-DM | 1.20-4.30 | 0.25-0.66 | O | O | O | • | • | O | O | |||||||
WNMG080416-DM | 1.60-4.30 | 0.30-0.90 | O | O | O | • | • | O | O | |||||||
• : Recommended Grade
O: Optional Grade
Application:
These WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades. Recommended for rough, semi-finishing and finishing of machining most steels, stainless steels, cast irons and super alloys under stable conditions.
The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
