Product Information:

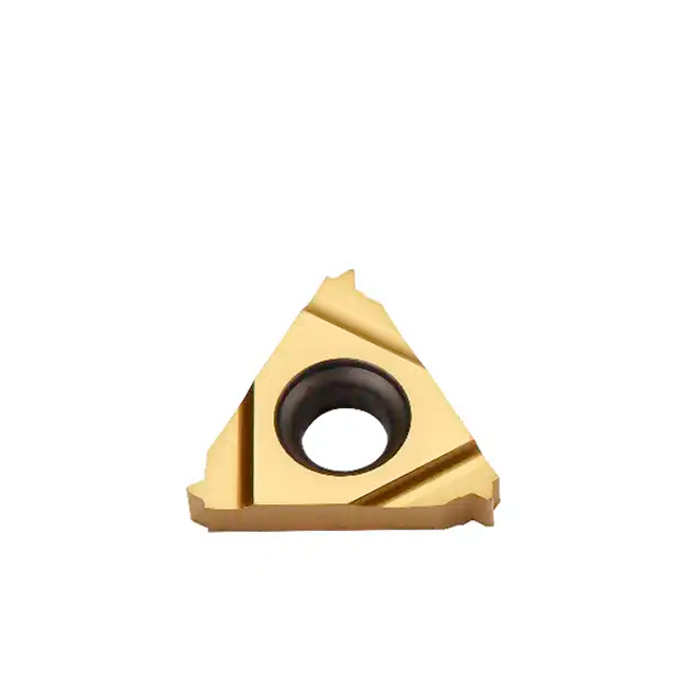

Threading indexable turning inserts with special geometry and rigid mounting in the turning holder, enables turning possibilities of strong and fast production. This tool is highly valued as it is proven in demanding production processes, in long-term use and has upgraded the production process with better results. With its high efficiency, this production-tested threading insert will help extending time between changing periods of your tool and consequently reduce production downtime.

This carbide insert will bring you satisfaction. High temperature resistance and surface coating enables smooth separation of the chip from the work process.

Specifications:

Type	Range   of thread pitch	Insert Dimensions (mm)				Grade
	Pitch/Inch	IC	S	X	Y	JK1320	JK1520
16ER8NPT	8	9.525	3.52	1.8	1.3	•	O
16ER11.5NPT	11.5	9.525	3.52	1.5	1.1	•	O
16ER14NPT	14	9.525	3.52	1.2	0.9	•	O
16ER18NPT	18	9.525	3.52	1	0.8	•	O
16ER27NPT	27	9.525	3.52	0.8	0.7	•	O
16IR8NPT	8	9.525	3.52	1.8	1.3	•	O
16IR11.5NPT	11.5	9.525	3.52	1.5	1.1	•	O
16IR14NPT	14	9.525	3.52	1.2	0.9	•	O
16IR18NPT	18	9.525	3.52	1	0.8	•	O
16IR27NPT	27	9.525	3.52	0.8	0.7	•	O

• : Recommended Grade

O: Optional Grade

Application:

It’s useful set of threading carbide tungsten turning inserts. It’s intended for turning steel and stainless steel, but it also performs when turning other alloys.

The special designed chip breaker ensures reliable chip flow, both in case of external and internal threading. The different series of threading inserts can be applied in different fields.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
