CNMG Turning Inserts
CNMG Turning Inserts

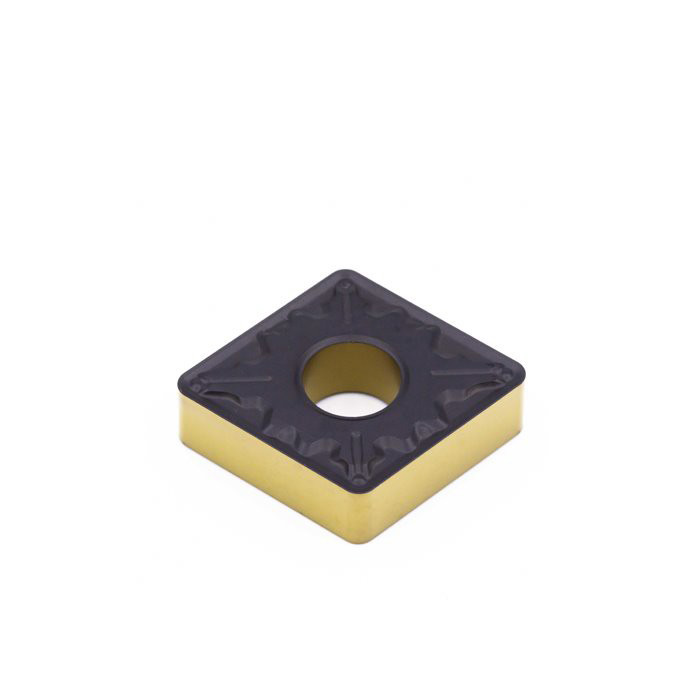

Product name: CNMG Inserts
Series: CNMG
Chip-Breakers: AM/AR/BF/BM/BR/CM/DM
Product Information:
CNMG Double-Sided 80° Rhombic turning Inserts.it can deal with multiple operations by combining different chip breakers and grades.CNMG 80° Turning Inserts feature an advanced coating over a very deformation-resistant unalloyed carbide substrate. which will bring efficient machining and high stability.Universal high productivity grade for turning.Good balance of productivity and reliability.it’s an good ideal choice for roughing.finishing and general machining.
Specifications:
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4225 | JK4225 | JK4325 | JK4235 | JK4335 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | ||||
P Semi Finishing | CNMG120404-AM | 0.60-6.40 | 0.10-0.30 | • | O | • | O | O | |||||||
CNMG120408-AM | 1.20-6.40 | 0.20-0.60 | • | O | • | O | O | ||||||||
CNMG120412-AM | 1.80-6.40 | 0.30-0.90 | • | O | • | O | O | ||||||||
CNMG120416-AM | 2.40-6.40 | 0.12-0.40 | • | O | • | O | O | ||||||||
CNMG160608-AM | 1.20-8.10 | 0.10-0.30 | • | O | • | O | O | ||||||||
CNMG160612-AM | 1.80-8.10 | 0.20-0.60 | • | O | • | O | O | ||||||||
CNMG160616-AM | 2.40-8.10 | 0.30-0.90 | • | O | • | O | O | ||||||||
CNMG190608-AM | 1.20-9.70 | 0.20-0.60 | • | O | • | O | O | ||||||||
CNMG190612-AM | 1.80-9.70 | 0.30-0.90 | • | O | • | O | O | ||||||||
CNMG190616-AM | 2.40-9.70 | 0.40-1.20 | • | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK4235 | JK4335 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | ||||
P Rough Machining | CNMG120408-AR | 1.45-5.20 | 0.15-0.32 | • | O | ||||||||||
CNMG120412-AR | 2.15-5.20 | 0.25-0.50 | • | O | |||||||||||
CNMG120416-AR | 2.90-5.20 | 0.30-0.65 | • | O | |||||||||||
CNMG160608-AR | 1.45-6.40 | 0.15-6.35 | • | O | |||||||||||
CNMG160612-AR | 2.15-6.40 | 0.24-0.50 | • | O | |||||||||||
CNMG160616-AR | 2.90-6.40 | 0.30-0.65 | • | O | |||||||||||
CNMG190608-AR | 1.45-7.70 | 0.15-0.35 | • | O | |||||||||||
CNMG190612-AR | 2.15-7.70 | 0.25-0.50 | • | O | |||||||||||
CNMG190616-AR | 2.90-7.70 | 0.30-0.65 | • | O | |||||||||||
CNMG190624-AR | 4.30-7.70 | 0.45-0.95 | • | O | |||||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1525 | JR1330 | ||||
M Finishing | CNMG090304-BF | 0.25-2.40 | 0.05-0.15 | • | • | O | O | O | |||||||
CNMG090308-BF | 0.50-2.40 | 0.10-0.30 | • | • | O | O | O | ||||||||
CNMG120404-BF | 0.25-3.20 | 0.05-0.15 | • | • | O | O | O | ||||||||
CNMG120408-BF | 0.50-3.20 | 0.10-0.30 | • | • | O | O | O | ||||||||
CNMG120412-BF | 0.75-3.20 | 0.15-0.45 | • | • | O | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
| CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1525 | JR1330 | ||||
M Semi Finishing | CNMG120404-BM | 0.30-4.30 | 0.08-0.25 | O | O | • | O | O | |||||||
CNMG120408-BM | 0.65-4.30 | 0.15-0.45 | O | O | • | O | O | ||||||||
CNMG120412-BM | 0.95-4.30 | 0.20-0.65 | O | O | • | O | O | ||||||||
CNMG160608-BM | 0.65-5.30 | 0.15-0.45 | O | O | • | O | O | ||||||||
CNMG160612-BM | 0.95-5.30 | 0.25-0.65 | O | O | • | O | O | ||||||||
CNMG160616-BM | 1.30-5.30 | 0.30-0.90 | O | O | • | O | O | ||||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||
| CVD | |||||||
JK3020 | JK3040 | JK3315 | JK3415 | ||||
K Semi Finishing | CNMG120404-CM | 0.40-4.30 | 0.08-0.25 | • | |||
CNMG120408-CM | 0.80-4.30 | 0.15-0.45 | • | ||||
CNMG120412-CM | 1.20-4.30 | 0.20-0.65 | • | ||||
CNMG160612-CM | 1.20-5.30 | 0.25-0.65 | • | ||||
CNMG160616-CM | 1.60-5.30 | 0.30-0.90 | • | ||||
CNMG190612-CM | 1.20-6.40 | 0.25-0.65 | • | ||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1325 | JR1528 | JR1330 | ||||
M Rough Machining | CNMG120404-BR | 0.30-4.30 | 0.08-0.25 | O | O | O | • | • | O | ||||||
CNMG120408-BR | 0.65-4.30 | 0.15-0.45 | O | O | O | • | • | O | |||||||
CNMG120412-BR | 0.95-4.30 | 0.25-0.65 | O | O | O | • | • | O | |||||||
CNMG160608-BR | 0.65-5.30 | 0.15-0.45 | O | O | O | • | • | O | |||||||
CNMG160612-BR | 0.95-5.30 | 0.25-0.65 | O | O | O | • | • | O | |||||||
CNMG160616-BR | 1.25-5.30 | 0.30-0.90 | O | O | O | • | • | O | |||||||
• : Recommended Grade
O: Optional Grade
| Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
| CVD | PVD | |||||||||||||||
JK4215 | JK4315 | JK4225 | JK4325 | JK1025 | JK1325 | JK1525 | JK1328 | JR1010 | JR1520 | JR1525 | JR1028 | JR1030 | ||||
S Semi Finishing | CNMG120404-DM | 0.40-4.30 | 0.08-0.25 | O | O | O | • | O | • | O | ||||||
CNMG120408-DM | 0.80-4.30 | 0.15-0.45 | O | O | O | • | O | • | O | |||||||
CNMG120412-DM | 1.20-4.30 | 0.25-0.65 | O | O | O | • | O | • | O | |||||||
CNMG120416-DM | 1.60-4.30 | 0.30-0.90 | O | O | O | • | O | • | O | |||||||
• : Recommended Grade
O: Optional Grade
Application:
Dedicated grades and geometries for all applications and materials.CNMG 80° Turning Inserts is an ideal choice for rough, semi-finishing and finishing machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.
The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
