Product Information:

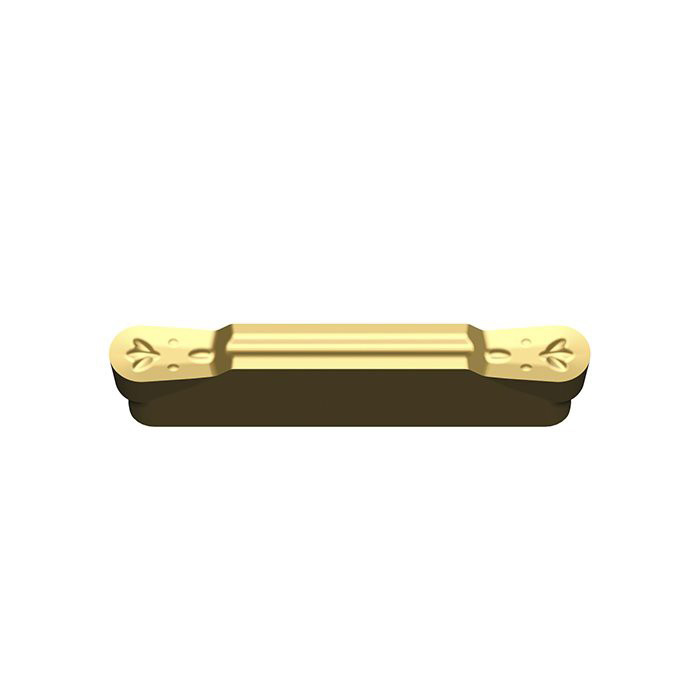

Parting and grooving inserts are inserts for cylinder parting and grooving, including to the outer circular, the inner hole groove, the cutter withdrawal groove, and the end face groove.ERMN insert suitable for parting, grooving, and turning. Easy machining and unobstructed chip flow lead to improved surface quality.Geometry of ERMN cutting insert is shaped for profile turning. Without hole through the insert. Strong cutting edges offer best reliability in hard cutting conditions and long endurance.

Specifications:

Type

Fn (mm/rev)

Grade

CVD

PVD

JK4215

JK4225

JK4235

JK4315

JK4325

JK1025

JK1325

JK1328

JK1528

JR1010

JR1525

ERMN200-M

0.05-0.15

•

O

•

O

O

ERMN300-M

0.08-0.18

•

O

•

O

O

ERMN400-M

0.10-0.20

•

O

•

O

O

ERMN500-M

0.12-0.23

•

O

•

O

O

ERMN600-M

0.15-0.27

•

O

•

O

O

ERMN800-M

0.18-0.35

•

O

•

O

O

• : Recommended Grade

O: Optional Grade

Application:

Recommended for different purposes and applications in parting and grooving .It performs well on turning material steel, stainless steel and cast iron.

The company has a complete blade manufacturing process equipment production line from powder raw material preparation, mold making, pressing, pressure sintering, grinding, coating and coating post-treatment. It focuses on the research and innovation of the base material, groove structure, precision forming and surface coating of carbide NC inserts, and constantly improves the machining efficiency, service life and other cutting properties of carbide NC inserts. After more than ten years of scientific research and innovation, the company has mastered a number of independent core technologies, has independent R&D and design capabilities, and can provide customized production for each customer.
